Precision Measurement Tips for New Swiss CNC Lathe Operators

Starting a career as a Swiss CNC lathe operator can be both exciting and challenging. One of the most critical skills to master early on is precision measurement — the foundation of high-quality machining. When your supervisor or mentor asks you to check part accuracy, here are the essential things you should pay attention to.



1. Understand the Blueprint and Tolerances

Before you start measuring, carefully review the engineering drawing. Understand the dimensions, tolerances, and geometric requirements (GD&T). Knowing which dimensions are critical helps you prioritize measurements and avoid unnecessary mistakes.



2. Use the Right Measuring Tools

Swiss CNC parts often require micron-level accuracy. Common tools include:

Micrometers (outside, inside, depth)

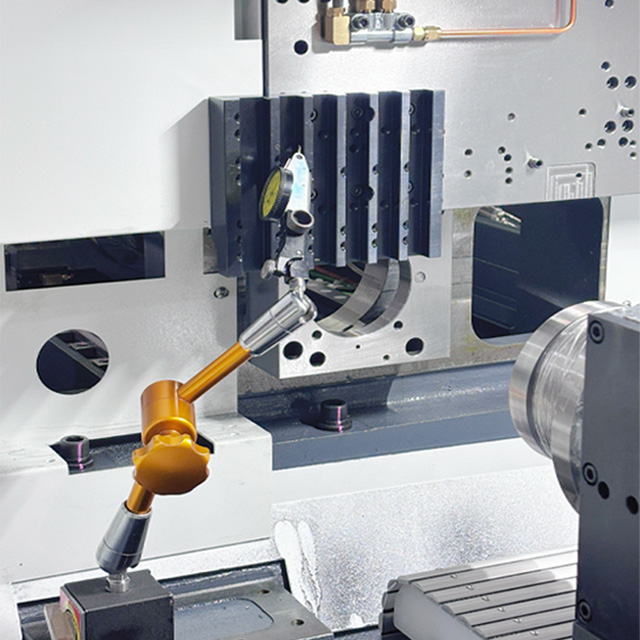

Dial indicators and test indicators

Calipers (digital or Vernier)

Gauge blocks and ring gauges

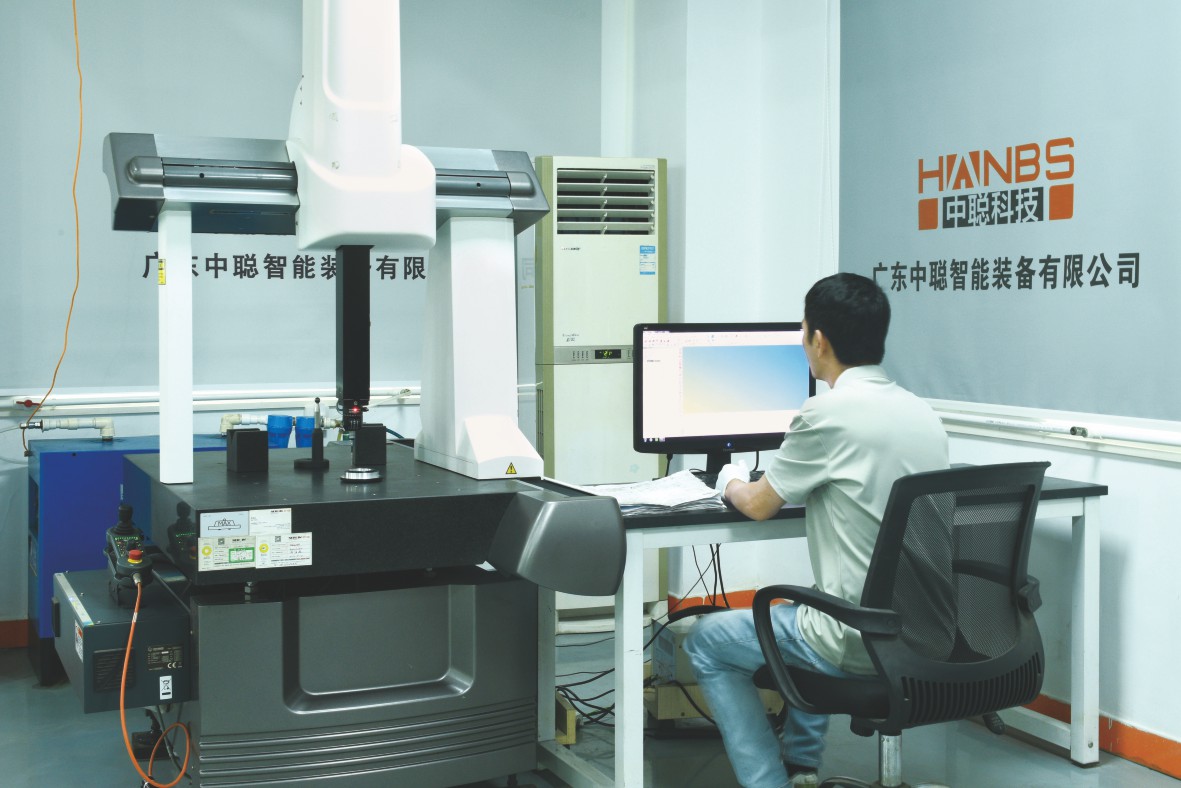

Optical or vision measurement systems

Always ensure your measuring instruments are calibrated and clean before use.



3. Maintain a Clean Measuring Environment

Even a small amount of dust, coolant, or oil can affect accuracy. Always:

Wipe parts and tools before measurement.

Avoid touching measurement surfaces with bare hands — body heat can cause thermal expansion.

Keep measuring equipment in a temperature-controlled environment if possible.



4. Measure at the Correct Temperature

Precision parts should ideally be measured at 20°C (68°F), the industry standard. Temperature fluctuations can cause both the workpiece and measuring tools to expand or contract, leading to false readings.



5. Avoid Parallax and Human Error

When reading analog instruments like dial gauges or micrometers, always view from a straight angle. For digital tools, double-check the zero setting before each measurement. Take multiple readings for consistency.



6. Communicate with Your Mentor

If you’re unsure about a dimension or measuring method, ask your mentor before proceeding. Precision measurement is not about speed — it’s about accuracy and consistency. Learning from experienced machinists helps you build good habits early on.



7. Record and Verify Measurements

Always document your results clearly, whether manually or through digital quality control systems. Verification against the drawing or CNC program ensures the part meets specification before moving to the next operation.



Conclusion

Precision measurement is a key skill for every Swiss CNC lathe operator. By understanding your tools, maintaining a clean workspace, and respecting measurement standards, you can ensure high accuracy and build confidence in your machining career. Remember — accurate measurement means reliable quality.
