What Makes A Swiss Lathe Different?

Views: 0     Author: Site Editor     Publish Time: 2024-08-28      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

      Hello everyone, this is HANBS, I'm Sonya and it's time to share with you again, today we're going to explore WHAT MAKES A SWISS LATHE DIFFERENT?


      In fact, we all know that a swiss lathe is a high-precision machining equipment, specially used for the production of parts and accessories with small but precise tolerances, as well as parts that need to be customized. Unlike a traditional lathe, a swiss type lathe uses a system of guide bushings to support the workpiece and a sliding main box that pushes the material towards the tool through the x and z axes, thus reducing vibration to improve accuracy. It can be equipped with different types of tools, and with a multi-axis system that allows multiple machining operations in one clamping, making it ideal for machining precision parts in areas such as medical devices, electronic components and watches.


Back on topic, let's see what the main differences are

1. Guiding system

  • Main feature: the workpiece is supported by a guide bush in close proximity to the cutting tool.

  • Advantage: It can minimize the number of clamping times, prevent inconsistencies in the size of the error, and also drastically reduce the deviation and vibration of the workpiece. This is essential to maintain the accuracy of slender and small diameter parts.

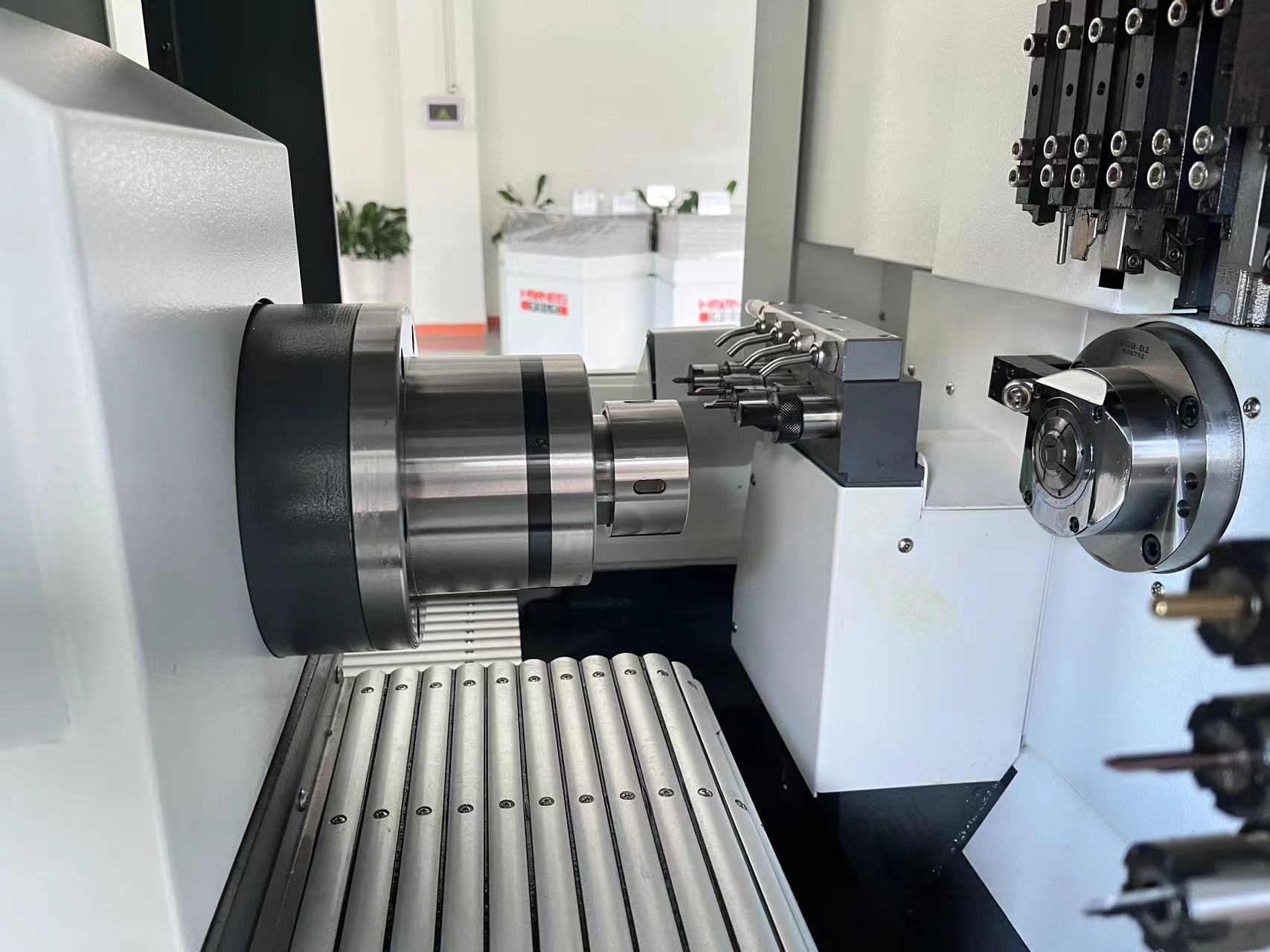

spindle and guide


2. Sliding Spindle Housing

  • Main features: The spindle box moves with the workpiece, which remains supported by the guide bushings during the cutting process.

  • Advantages: The sliding spindle housing feeds the material into the guide bush, which improves machining accuracy by providing stable support in the cutting zone, especially  for machining long parts.


3. Multi-axis control

  • Main features: swiss type cnc lathe usually consists of multiple axes including x-axis, z-axis, y-axis and c-axis for controlling rotary axes, etc. It is used for machining complex geometries.

  • Advantages: The design of the sliding spindle housing allows multi-axis operations such as turning, milling, drilling, etc. to be performed on a single machine and is suitable for machining parts with complex geometries.

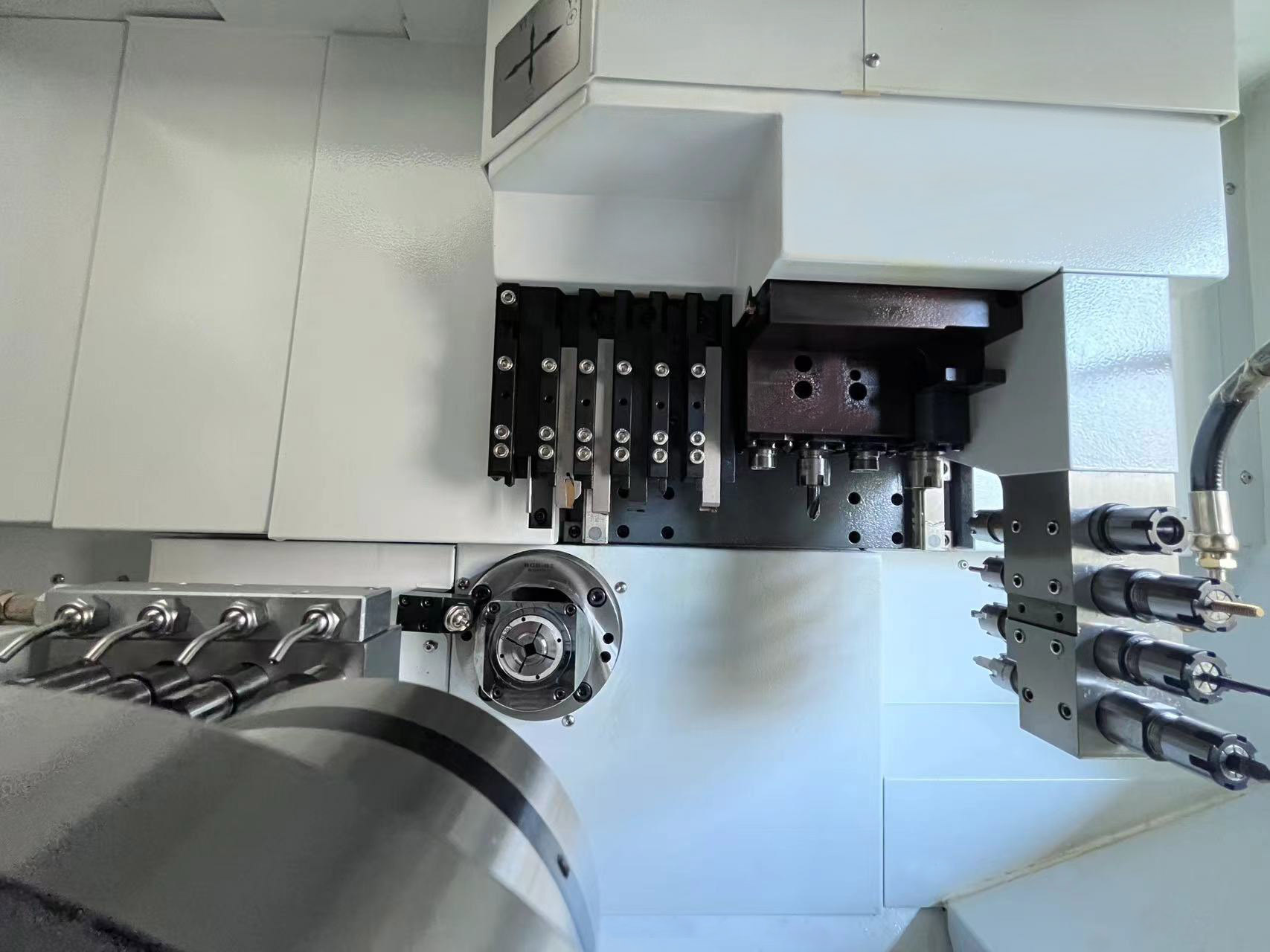

swiss lathe cutting tool


4. Ability to machine small and complex parts

  • Main features: swiss lathe overall volume is not very large, in addition to the main and secondary spindles accounted for most of the place, leaving the processing space is not large, but this is just for the small and complex parts to provide the convenience, it can do other lathe can not do the ultra-high precision.

  • Advantages: Because of its own machining advantages, swiss lathe is often used in medical equipment, electronic products, watch equipment and so on.


5. Higher productivity

  • Main features: swiss cnc lathe is usually fully automated or semi-automated, which can effectively reduce human intervention and can run continuously and efficiently.

  • Advantages: a high degree of automation can be in a one-time operation to produce complex parts in the ability to greatly improve the finished product rate and qualified rate, suitable for high-volume production needs.


6. Power props

  • Main features: swiss type lathe is usually equipped with power tooling, that is, the tool is installed on the power head, which means that not only the tool is easy to install, and the tool can be rotated, and in the workpiece in the rotation of milling, drilling, tapping and other operations.

  • Benefits: Further enhances the versatility of the machine, allowing complex parts to be machined in a single clamping without the need to transfer to another machine.


7. Higher initial cost and setup time

  • Key feature: probably swiss type cnc lathe is more expensive than traditional lathe and it takes more time to set up the code.

  • Trade-offs: However, in the long run, due to its high precision and ideal productivity and qualification rate, as well as reducing the need for secondary operations, it can save material, labor, and qualification rate in high volume production.


      Overall, the swiss lathe is a specialized machine designed for high-precision manufacturing of small, complex parts, combining the advantages of high precision, high efficiency and versatility, and is particularly suited to industries requiring tight tolerances and complex designs.


      Well, the above is today's sharing, I hope to be able to help people in need, we will see you next time. See you next time.

byebye
