The Power of Multi-Axis Synchronization in Swiss Lathes

Views: 0     Author: Site Editor     Publish Time: 2024-12-23      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The Role of Multi-Axis Synchronization in Swiss Lathes

Swiss Lathes are known for their precision and versatility, making them indispensable in industries requiring high-precision machining, such as medical devices, watchmaking, and aerospace. One of the key technologies that allow Swiss Lathes to achieve such efficiency is multi-axis synchronization. This technology, powered by CNC systems, enables the simultaneous and coordinated movement of multiple axes, improving both accuracy and speed in machining processes.

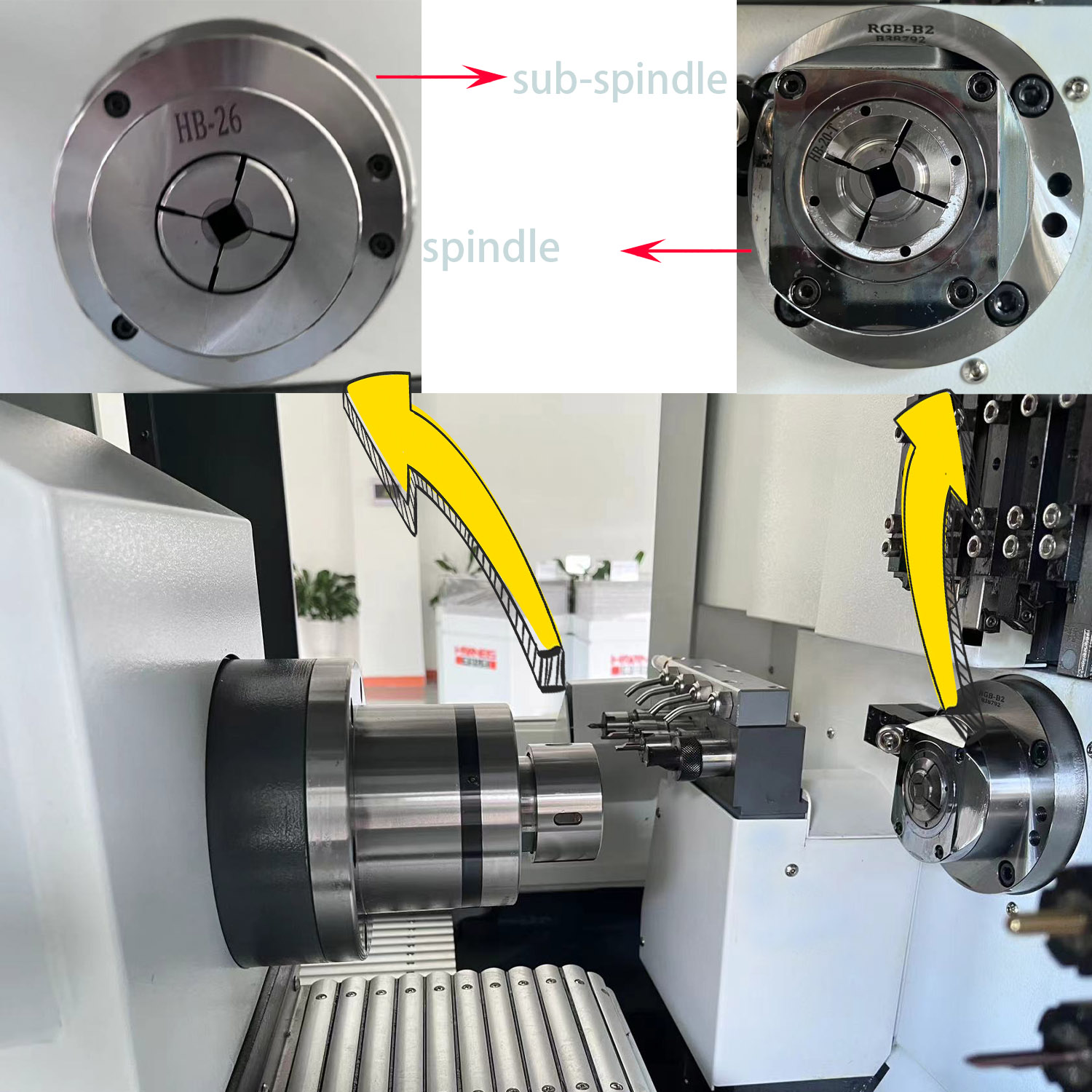

Spindle control

1. Understanding Multi-Axis Synchronization

Unlike traditional lathes, which typically operate with limited axis movements, Swiss Lathes use a multi-axis system that includes several axes working in parallel. The most common axes in a Swiss Lathe are:

· X-axis and Z-axis: Control the tool’s movement in the horizontal and vertical directions.

· Y-axis: Adds additional flexibility by controlling the tool’s movement in the transverse direction, allowing for more complex cuts.

· C-axis: Controls the movement of the sub-spindle, enabling additional work on the opposite side of the main spindle.

These multiple axes can work together to perform complex operations such as turning, milling, drilling, and tapping, all in one setup. This synchronized movement enables Swiss Lathes to perform intricate operations efficiently and accurately.

2. How Multi-Axis Synchronization Works

In a Swiss Lathe, multi-axis synchronization allows the coordinated movement of the machine’s tool and the workpiece. For example, while one set of axes (such as the X and Z axes) controls the tool’s path, another set (like the Y and C axes) controls the movement of the workpiece. This coordination ensures that the cutting tool is always positioned correctly in relation to the workpiece, even during complex operations.

By programming the CNC system with specific instructions for each axis, the Swiss Lathe can simultaneously carry out multiple tasks. For instance, while turning the workpiece, the lathe can also perform milling operations or drill holes without needing to reposition the workpiece. This simultaneous processing reduces cycle time and increases productivity.

3. Advantages of Multi-Axis Synchronization

Increased Precision
Multi-axis synchronization significantly improves the precision of machining operations. By allowing the tool and workpiece to move in multiple directions at once, Swiss Lathes can maintain tighter tolerances, which is especially critical for small, high-precision components.

Complex Parts Made Simpler
Traditional lathes often require multiple setups to complete a complex part, resulting in potential misalignments and errors between operations. With multi-axis synchronization, Swiss Lathes can complete intricate, multi-step processes in a single setup, reducing the risk of error and saving time.

Higher Efficiency
Swiss Lathes with multi-axis systems allow for more efficient use of time. Since multiple operations can be performed simultaneously, production times are drastically reduced. This efficiency is particularly beneficial in industries with high-volume production requirements, such as automotive and medical device manufacturing.

Reduced Human Intervention
The precision and automation provided by multi-axis synchronization reduce the need for manual adjustments. This not only improves the consistency of the parts being produced but also minimizes the risk of human error, ensuring high-quality results with minimal supervision.

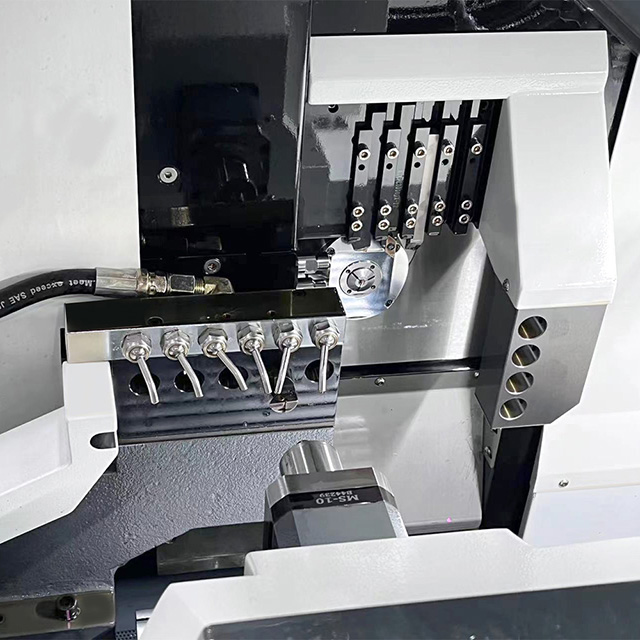

Multi knives

4. Applications in Precision Industries

Swiss Lathes with multi-axis synchronization are invaluable in industries that require extreme precision. In medical device manufacturing, for example, Swiss Lathes are used to produce small, intricate components like screws, implants, and surgical tools. The multi-axis system ensures these parts are manufactured to the exact specifications required for their function.

In watchmaking, where precision is paramount, Swiss Lathes are used to create small, delicate gears and components. The multi-axis technology enables the production of these tiny parts with incredibly tight tolerances, which is essential for the accurate timekeeping of watches.

In aerospace, where high-precision parts are needed for critical applications, multi-axis Swiss Lathes are used to produce complex components like turbine blades and other highly detailed pieces. The ability to complete several operations simultaneously ensures faster production times and reduced costs, all while maintaining the precision needed for these demanding industries.

5. Conclusion

Multi-axis synchronization is a crucial feature that enhances the performance and versatility of Swiss Lathes. By enabling the coordinated movement of multiple axes, Swiss Lathes can perform complex, high-precision machining tasks in a single setup, saving time and improving accuracy. This technology has transformed industries such as medical devices, watchmaking, and aerospace, where precision is key. As Swiss Lathes continue to evolve, multi-axis synchronization will play an even larger role in driving efficiency and innovation in machining.
