       Hello everyone. This is HANBS, a Swiss lathe factory from China. My name is Sonya, and it seems a long time since I shared my knowledge about Swiss lathe with you. Today, I would like to share with you the guide bush of Swiss lathe.


       Guide bush is an important part of Swiss lathe, which is mainly used for machining high-precision parts. Especially in industries such as watchmaking, medical device manufacturing and electronics. Here is an overview about guide bushings in Swiss lathe:

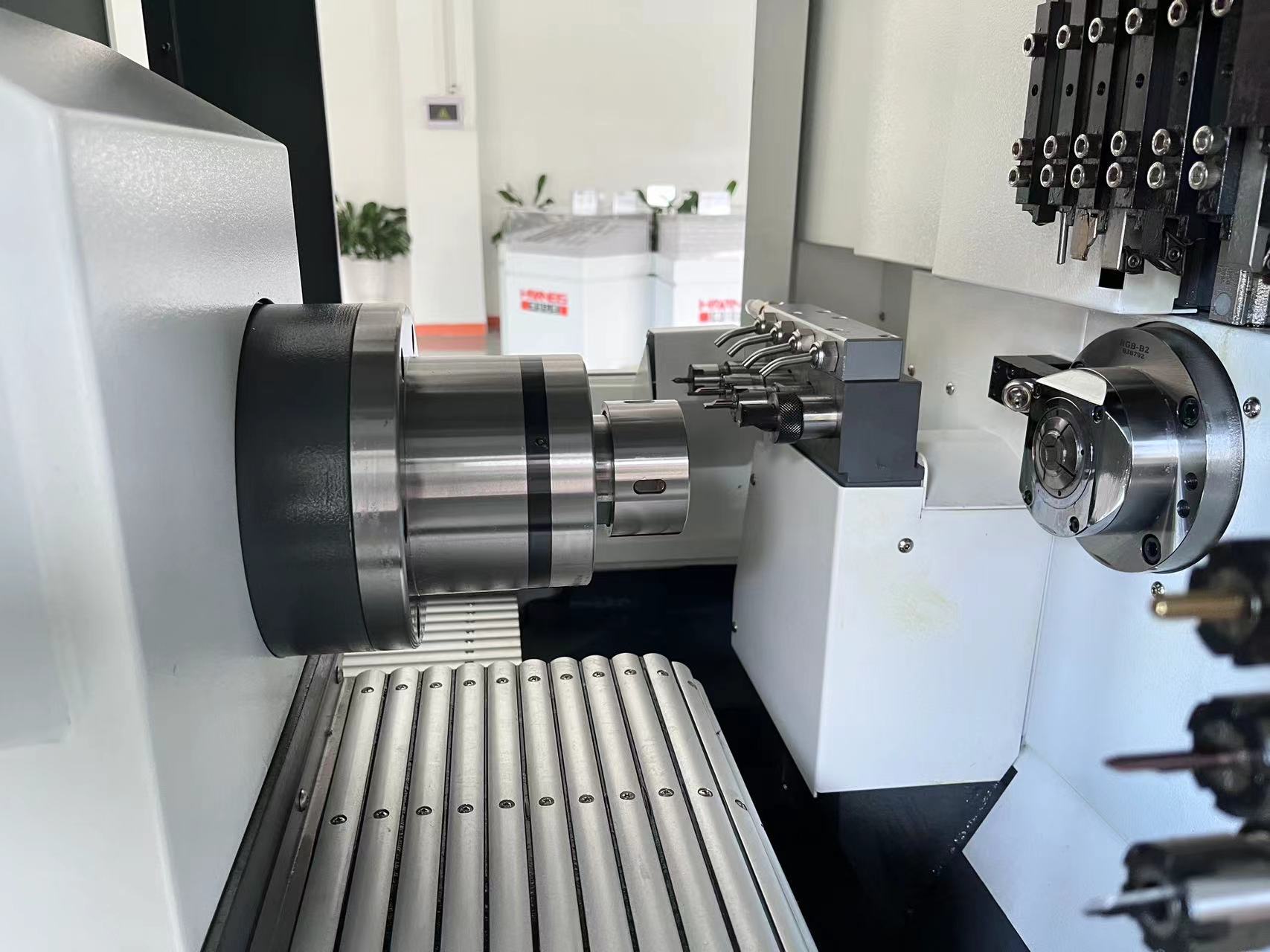

spindle and bushing


What is a guide bush in a Swiss lathe?

  • In a Swiss lathe, the purpose of the guide bush is to support the bar during operation and to increase stability and precision. The main difference between a Swiss lathe and a conventional lathe is that in a Swiss lathe, the workpiece is held in a sliding headstock and the guide bush ensures that the material remains stable as the tool moves along the Z-axis.


Functions of the guide bush

  • Support and stabilization: The guide bush provides stable support for the material and reduces deflection or vibration, which is critical when machining long, thin or fragile parts.

  • High precision: Support is achieved by keeping the workpiece close to the cutting tool. Guild bushings allow for greater accuracy, making Swiss lathes the best choice for machining small, complex parts.

  • Reduced Material Bending: The closer the bushing is to the cutting tool, the less the material will bend during machining, resulting in higher accuracy and smaller tolerances.


Types of guide bushings

  • Fixed Guide Bushings: These bushings remain in a fixed position and are ideal for turning bar stock of uniform diameter. They are made of hard materials such as carbide or steel for durability.

  • Rotating (Live) Guide Bushings: These bushings rotate with the bar stock and are used for machining softer materials or where friction needs to be minimized. This device is especially useful for materials    that are sensitive to heat or damage from friction.

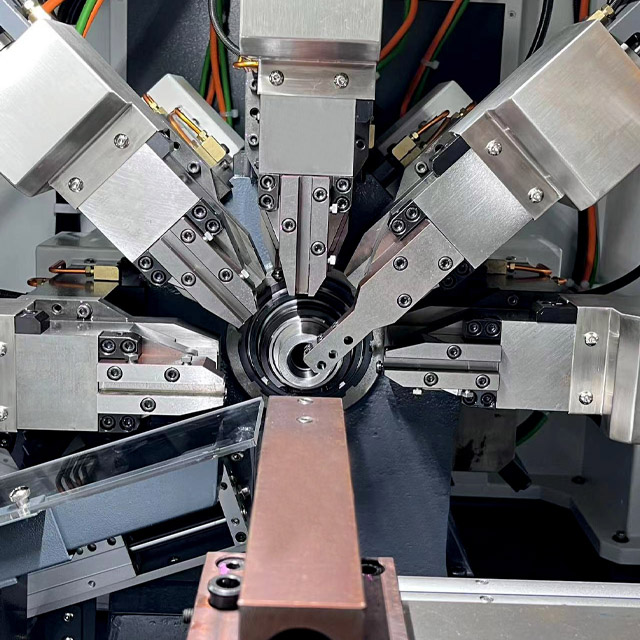

strong drill bushing


Key Elements:

  • BUSHING SIZE: The diameter of the bushing should match the diameter of the material for optimum performance. Too much clearance between the bushing and the material will result in misalignment, while too little clearance will increase friction.

  • Selection of Material: Bearings are usually made from durable materials such as carbide, tool steel, and even bronze in special cases. Cemented carbide is commonly used for its wear resistance, especially in high-precision applications.

  • Cooling and Lubrication: Proper lubrication and coolant flow are important to minimize friction between the bushing and the workpiece, and to avoid excessive wear of the tool and material.


When to use guide bushings:

  • Long, thin workpieces: Swiss lathes are equipped with bushings suitable for machining long, thin workpieces such as screws, pins, pins, etc. without warping or distortion.

  • Precision requirements: Guide bushings are used where extreme precision is required, with tolerances often in the micron range, such as medical implants, dental parts or microelectronics.


Comments Applications:

  • Watchmaking: Precision parts for the watch industry.

  • Medical parts: e.g. for surgical machines or implant components.

  • Aerospace and electronics: Machining of small, high-precision parts.


Maintenance and wear:

  • Guide bushings wear over time due to constant contact with the bar stock. Regular inspection and replacement is critical to maintaining accuracy. Some guide bushings can be adjusted to compensate for minor wear before they need to be replaced.


       In conclusion, guide bushings are a critical component of a Swiss lathe setup to ensure accuracy, minimize deflection, and support slender workpieces during machining.


       That's all for today, if you're interested in Swiss lathes or CNC lathes, or have any questions, let me know and let's talk.
