Swiss CNC vs 5-Axis Machining: What’s the Right Fit?

Views: 0     Author: Site Editor     Publish Time: 2025-07-22      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In the world of advanced manufacturing, both 5-axis machining centers and Swiss-type CNC lathes are essential technologies for producing high-precision components. While they are often mentioned in the same conversations around tight tolerances and complex geometries, these two machine types are fundamentally different — in design, function, and ideal application.

This article outlines their core differences and helps manufacturers determine which solution is better suited to their production needs.



Core Technology Differences

Aspect

Swiss CNC Lathe

5-Axis Machining Center

Primary Operation

Turning (rotating workpiece)

Milling (rotating tool)

Workpiece Type

Long, slender, round parts

Prismatic, multi-face, or freeform parts

Typical Axes

5–7 (including live tools and sub-spindle)

5 (XYZ + dual rotary axes)

Material Holding

Guide bushing + collet

Vise or modular fixturing

Ideal Production Volume

High-volume, high repeatability

Low- to mid-volume, high-mix

Tooling Complexity

Fixed tool blocks + optional live tools

Full 3D tool path with dynamic orientation

5 axis cnc lathe



Where Swiss CNC Lathes Excel

Swiss-type CNC lathes are designed to efficiently manufacture small-diameter, long-length components. They offer exceptional stability and repeatability for operations such as micro-turning, threading, grooving, and drilling.

Key Benefits:

Ideal for micro and slender parts under 25mm in diameter

Optimized for round, concentric geometries

Capable of unattended, lights-out operation

High-speed cycle times with short tool travel distances

Common Applications:

Medical screws and bone pins

Aerospace fasteners and hydraulic fittings

Watch components and precision electronics shafts



Where 5-Axis Machining Centers Stand Out

5-axis machining centers provide unmatched flexibility in part geometry and orientation. With simultaneous movement along multiple rotary and linear axes, they allow complex parts to be machined in one setup, minimizing errors from part repositioning.

Key Benefits:

Machine multiple sides and angles in a single setup

Ideal for complex surfaces, pockets, and undercuts

Reduces the need for multiple fixtures or operations

Delivers tight tolerances across freeform geometries

Common Applications:

Orthopedic implants and surgical guides

Aerospace brackets and housings

High-performance engine components

Custom optical and defense-grade assemblies



Precision Comparison: Not Better, Just Different

Performance Metric

Swiss CNC Lathe

5-Axis Machining Center

Dimensional repeatability

Excellent in large-volume runs

High, but fixture-dependent

Surface finish (turning)

Outstanding for cylindrical parts

Good, depends on toolpath & material

Complex geometry machining

Limited to axial & radial ops

Fully 3D, multi-axis capability

Automation capability

Very high (ideal for 24/7)

Medium to high with proper setup




Strategic Fit: Which Machine for Which Job?

Choose Swiss CNC Lathe if you:

Produce high volumes of small-diameter round parts

Require exceptional surface finish on cylindrical surfaces

Need continuous, unattended operation

Want high ROI on standardized, repeatable parts

Choose 5-Axis Machining Center if you:

Produce complex 3D components with multi-face features

Require maximum geometric flexibility

Deal with lower batch sizes but higher part variation

Want to minimize secondary setups or operations

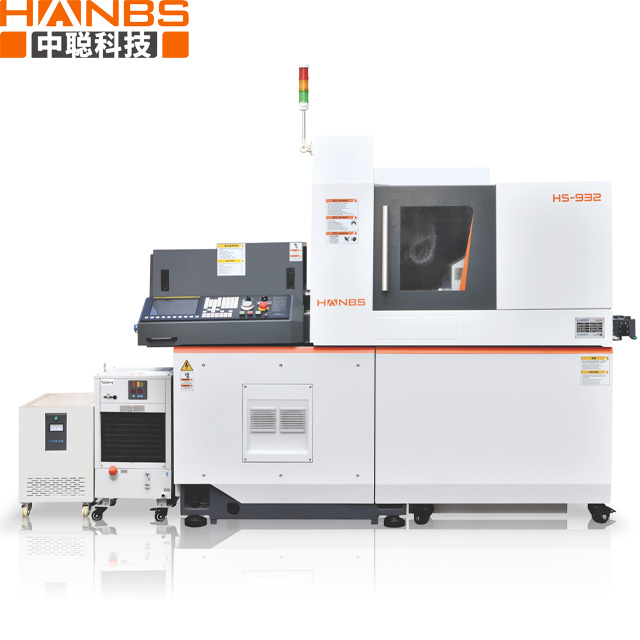

swiss-cnc-lahte-HS-932




The Bottom Line

Swiss CNC lathes and 5-axis machining centers are not competing technologies — they are complementary tools within a well-rounded manufacturing operation. Swiss machines dominate in high-speed, high-precision turning applications, while 5-axis machines shine in complex, multi-surface milling work.

Understanding the capabilities and strengths of each machine type helps manufacturers align capital investment with real production needs — maximizing efficiency, part quality, and profitability.



Need Help Choosing the Right Platform?

Our team can assist you in evaluating your part geometry, volumes, and tolerance requirements to recommend the optimal machine configuration for your business.
