Stability Through Support: Guide Bushings in Swiss Lathes

Vibration Control in Swiss CNC Lathes: The Role and Physics of the Guide Bushing System

Introduction

Swiss-type CNC lathes have become indispensable for the precision machining of long, slender components, especially in industries such as medical, aerospace, and electronics. One of the key features that set these machines apart from conventional CNC lathes is the guide bushing system. This mechanism plays a critical role in controlling vibration, enhancing dimensional accuracy, and enabling stable machining of parts with high length-to-diameter (L/D) ratios. In this article, we explore the underlying physics of the guide bushing, its design principles, and its impact on machining performance.



Why Long, Slender Parts Are a Challenge

In conventional CNC lathes, the workpiece is clamped at one end and extended outward into the machining zone. When the L/D ratio of the workpiece exceeds a certain threshold (typically above 3:1 or 4:1), the unsupported length becomes a major source of deflection and vibration during cutting. This leads to poor surface finish, dimensional inaccuracies, and even the risk of part bending or breaking under tool pressure.

Swiss-type lathes solve this problem using a radically different approach: rather than the part remaining stationary while the tool moves, the part moves longitudinally through a stationary guide bushing, which supports the workpiece close to the cutting point at all times.



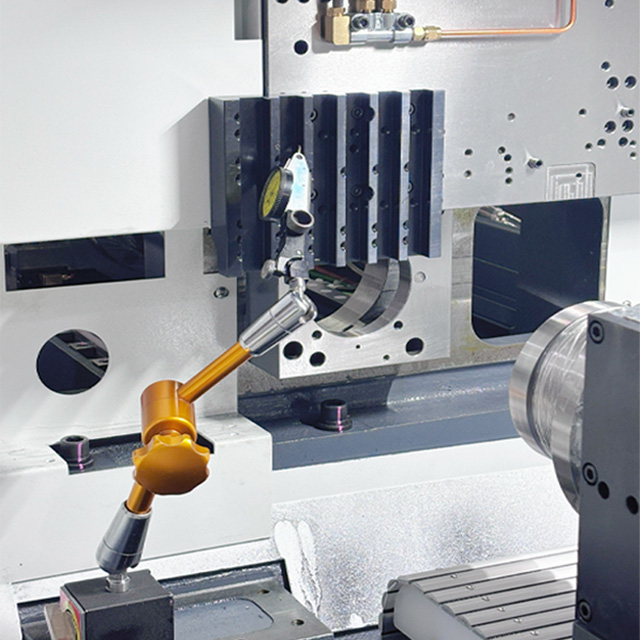

Guide Bushing Mechanism: How It Works

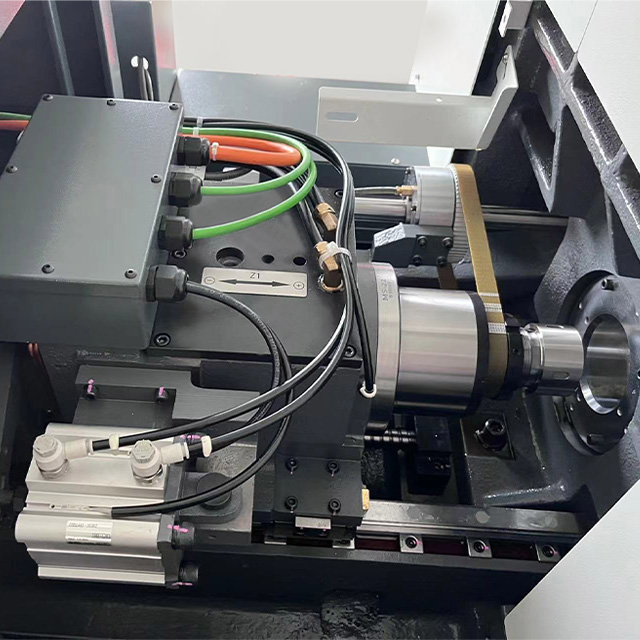

At the heart of the Swiss CNC lathe is the guide bushing—a precisely engineered support device typically made from carbide, bronze, or high-wear-resistant composites. The workpiece is fed through this bushing, and as it is machined, it slides axially with very tight clearance, often in the range of 3 to 10 microns.

The bushing remains fixed relative to the cutting tools, but the bar stock advances through it, allowing the cut to happen right at or near the point of support. This drastically reduces the free or unsupported length of the workpiece, thereby minimizing bending and vibration.



Vibration Damping: A Physical Perspective

Vibration during cutting operations can originate from multiple sources—tool pressure, bar stock harmonics, spindle imbalance, or environmental factors. The guide bushing effectively acts as a mechanical damper, increasing the system's overall stiffness and natural frequency.

The physics behind this can be described by the Euler-Bernoulli beam theory. For a beam (in this case, the workpiece) under lateral cutting force, deflection δ is proportional to the cube of its unsupported length L:

Where:

F is the cutting force,

E is the modulus of elasticity,

I is the area moment of inertia of the cross-section.

By reducing LLL—the effective unsupported length—via the guide bushing, the deflection drops dramatically, thereby stabilizing the machining process even for parts as small as 0.5 mm in diameter.



Types of Guide Bushings

There are two primary categories of guide bushings:

1. Fixed Guide Bushing: These offer maximum rigidity and are ideal for hard materials and tight-tolerance parts.

2. Rotating Guide Bushing: These synchronize with the bar's rotation, reducing friction and wear, and are useful for soft materials or parts with cosmetic surface requirements.

Advanced Swiss lathes may also feature programmable guide bushing pressure or hybrid systems that allow switching between modes depending on material and part geometry.



Applications and Impact

The effectiveness of the guide bushing system enables Swiss CNC lathes to machine components with extreme precision over long lengths—such as bone screws, hypodermic needles, fuel injector pins, or watch stems—where traditional lathes would fail or require additional fixturing.

Moreover, thanks to minimized vibration, tools wear more slowly, surface finishes improve, and secondary operations like grinding can often be eliminated, increasing overall production efficiency.



Conclusion

The guide bushing is more than just a support element in Swiss-type CNC lathes—it's a critical enabler of high-precision, high-stability machining. Its design, material, and integration directly impact the machine’s ability to produce long, slender parts without sacrificing accuracy or surface quality.

Understanding the physics and mechanics behind the guide bushing not only enhances our appreciation of Swiss lathe technology but also opens the door to further innovation in tool design, material processing, and ultra-precision manufacturing.
