Mastering CNC Machine Modes: A Beginner's Guide

Exploring the Five Modes of CNC Machine Operation: A Guide for Beginners

CNC (Computer Numerical Control) machines are at the heart of modern manufacturing, enabling the precise and efficient production of components across industries. Whether you're a novice stepping into the world of CNC or an experienced machinist looking to refine your understanding, knowing the five primary modes of CNC machine operation is essential. These modes allow for versatile functionality, catering to various stages of machining, from setup to execution. Let’s dive into each mode to uncover its purpose and practical applications.



1. Manual Mode (Jog Mode): The Hands-On Approach

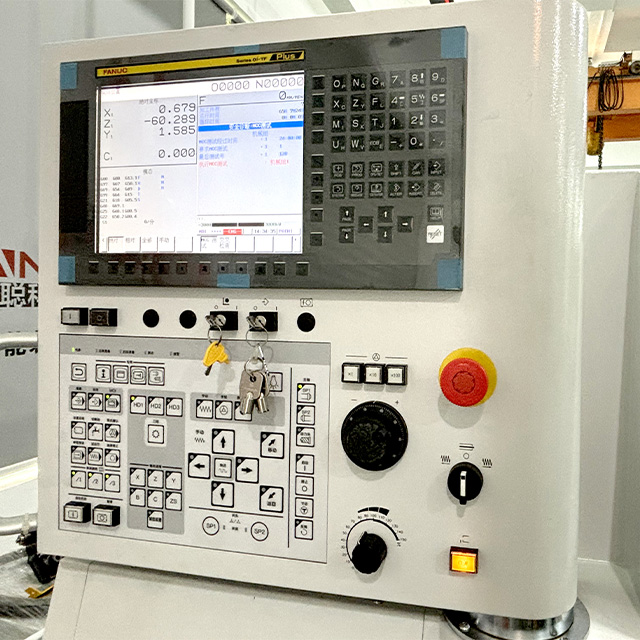

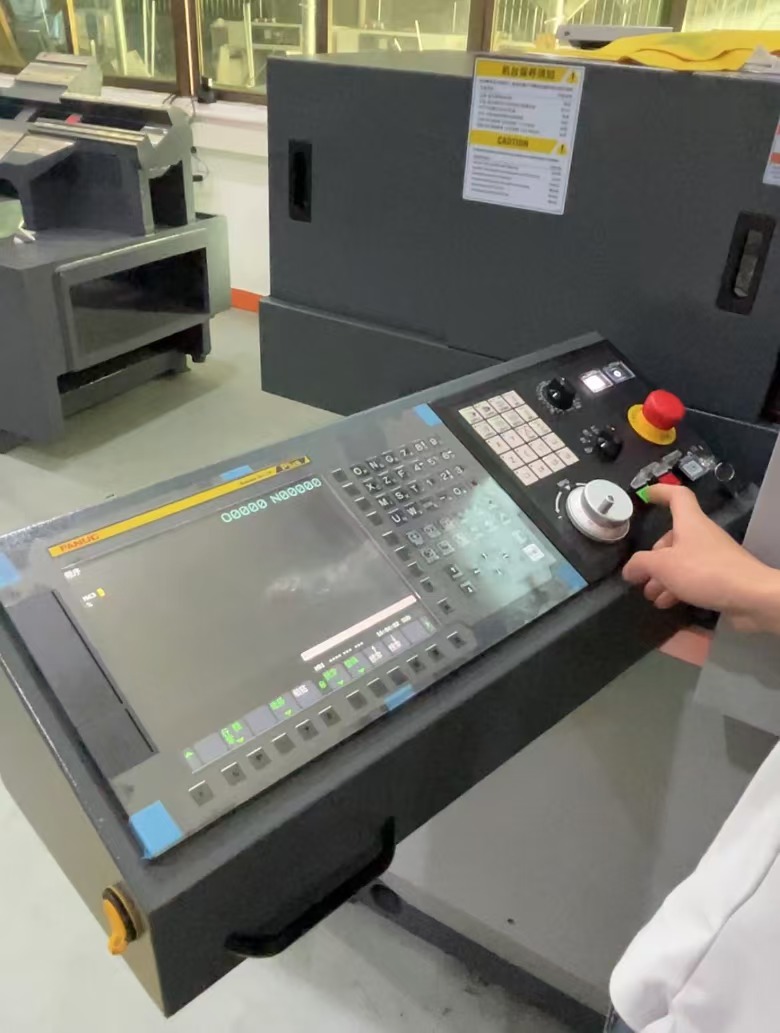

Manual mode is like having full control of the steering wheel in a car. In this mode, operators manually guide the movement of the machine’s axes using a control panel or pendant. It’s invaluable for tasks like:

· Positioning Tools: Precisely aligning tools with the workpiece.

· Initial Setup: Ensuring the workpiece and fixtures are properly aligned.

· Maintenance and Debugging: Manually moving components to troubleshoot issues.

This mode puts control in the hands of the operator, making it indispensable for setup and problem-solving.



2. Automatic Mode: Let the Machine Do the Work

Once a CNC program is prepared, it’s time to unleash the full potential of automation. In automatic mode, the machine reads and executes pre-written G-code or M-code, performing operations with incredible precision. This mode excels in:

· Batch Production: Producing large quantities of identical parts.

· Complex Machining: Handling intricate toolpaths with minimal human intervention.

· High Precision Tasks: Consistently delivering accurate results.

Automatic mode showcases the true power of CNC technology, turning detailed plans into reality with minimal input from the operator.



3. MDI Mode (Manual Data Input): A Quick Command Center

For rapid, on-the-spot tasks, MDI mode is a favorite. Operators can input individual lines of G-code or M-code directly into the CNC control system for immediate execution. Examples of its use include:

· Quick Movements: Directing the tool to a specific position.

· Simple Operations: Running a single drilling cycle or spindle command.

· Troubleshooting: Testing specific commands without running a full program.

Think of MDI mode as a direct communication line between the operator and the machine—fast, efficient, and straightforward.



4. Edit Mode: Tailoring the Program

CNC programs often need adjustments on the shop floor to meet specific requirements. Edit mode allows operators to create, modify, or fine-tune programs directly on the machine. Its features include:

· On-the-Fly Adjustments: Modifying toolpaths or parameters to optimize performance.

· Error Correction: Fixing mistakes in the program before execution.

· Customization: Tailoring the program for unique workpiece specifications.

This mode empowers machinists to adapt quickly, ensuring efficiency and accuracy during production.



5. Program Check/Simulation Mode: Preview Before You Perform

Imagine being able to test-drive a program without cutting a single piece of material. Program check or simulation mode allows operators to visualize and validate a CNC program before actual machining. Key benefits include:

· Error Detection: Identifying potential collisions or toolpath issues.

· Process Optimization: Ensuring the program runs smoothly without wasting materials.

· Operator Training: Helping newcomers understand the workflow in a risk-free environment.

This mode reduces costly mistakes and boosts confidence in the program’s reliability.



Bringing It All Together

CNC machines are marvels of technology, offering unmatched precision and versatility. Understanding their five primary operating modes—manual, automatic, MDI, edit, and program check—provides a foundation for successful operation. Each mode serves a specific purpose, from setting up and troubleshooting to executing and verifying complex tasks.

Whether you’re a beginner or a seasoned professional, mastering these modes ensures that you get the most out of your CNC machine while minimizing downtime and errors.
