Master and Sub-Spindle Height Alignment on Swiss CNC Lathes

Swiss CNC lathes are widely used in precision industries such as medical devices, watchmaking, electronics, and aerospace due to their exceptional accuracy, capability for small-diameter parts, and continuous feed system. In high-precision machining, the master and sub-spindle reference height (alignment) plays a critical role in ensuring coaxiality, roundness, and machining stability. Proper alignment is therefore essential for both quality and efficiency.

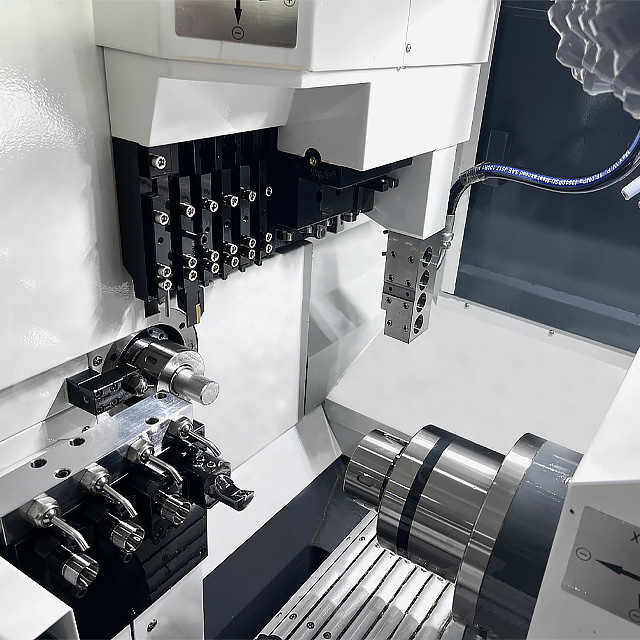

What is Master and Sub-Spindle Height Alignment?

Master and sub-spindle height alignment refers to the adjustment of the spindle centerlines so that both spindles are on the same horizontal plane and meet the theoretical coaxiality or specified tolerance.

• Master spindle alignment ensures that the spindle rotation axis is vertically and horizontally aligned with the machine bed reference surface.

• Sub-spindle alignment ensures that its rotation axis is coplanar with the master spindle, maintaining stable concentricity during machining.

Accurate height alignment reduces vibration, uneven cutting forces, and tool wear, improving overall machining quality.

Why Height Alignment Matters

1. Coaxial Accuracy: Misalignment between master and sub-spindle directly affects assembly precision, especially for shafts and multi-operation parts.

2. Machining Precision: Incorrect height alignment can cause cutting depth deviations, leading to roundness errors and surface imperfections.

3. Tool Life Extension: Proper alignment prevents uneven load on tools, reducing wear and risk of breakage.

4. Machine Longevity: Long-term imbalance in spindle height may damage bearings and lead screws.

Measuring and Adjusting Spindle Height

Tools Required

• Precision dial indicator or height gauge

• Precision square or angle block

• Laser alignment system (optional for high-end machines)

Master Spindle Alignment

1. Pre-check: Ensure the machine is level and the worktable is stable.

2. Height Measurement: Measure the distance between the spindle centerline and machine bed reference using a dial indicator.

3. Adjustment: Use adjustment screws or shims under the spindle housing to reach the design height.

4. Rotation Verification: Rotate the spindle while checking height consistency; maintain deviation within 0.01 mm for precision applications.

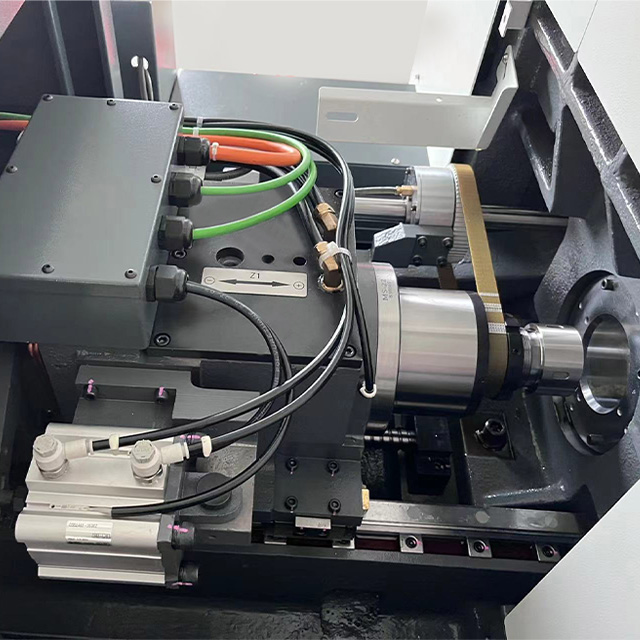

Sub-Spindle Alignment

1. Install the sub-spindle sleeve or chuck.

2. Measure the height difference between sub-spindle and master spindle centerlines using a dial indicator.

3. Fine-tune with shims or adjustable supports until both spindles are aligned; target deviation ≤0.005 mm.

4. Test run without load, observing vibration and centerline drift, and readjust if necessary.

Advanced Techniques

• Laser Alignment Systems: Provide fast, precise spindle coaxiality and height correction.

• Software Compensation: Modern CNC systems allow input of measured errors for automated correction.

Best Practices

1. Perform alignment at room temperature to avoid thermal expansion errors.

2. Avoid over-tightening or excessive looseness during adjustment to prevent vibration and uneven loading.

3. Recheck periodically, especially after tool or fixture changes.

4. Re-align after machine relocation or installation.

Conclusion

Master and sub-spindle height alignment on Swiss CNC lathes is essential for precision machining. Correct measurement and adjustment not only enhance coaxiality and machining accuracy but also extend tool and machine life. Mastering these techniques is crucial for operators and maintenance personnel in precision manufacturing.
