How to Optimize Surface Finish in Swiss Lathe Micro-Part Machining

Views: 0     Author: Site Editor     Publish Time: 2025-07-11      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Swiss-type CNC lathes are widely recognized for their superior precision and efficiency in producing small, high-tolerance components. However, achieving an exceptional surface finish, especially on micro parts, requires more than just the right machine — it demands a well-optimized process. Below are key strategies to significantly improve surface quality in Swiss lathe operations.



1. Choose the Right Tooling and Maintain Sharp Edges

 Use high-quality tools with ultra-fine cutting edges, such as coated carbide, ceramic, or PCD tools, especially for finishing operations.

 Implement tool wear monitoring to prevent dull tools from causing surface scratches or vibration marks.

 Opt for small nose radius tools to reduce cutting forces and material deformation in micro-scale machining.

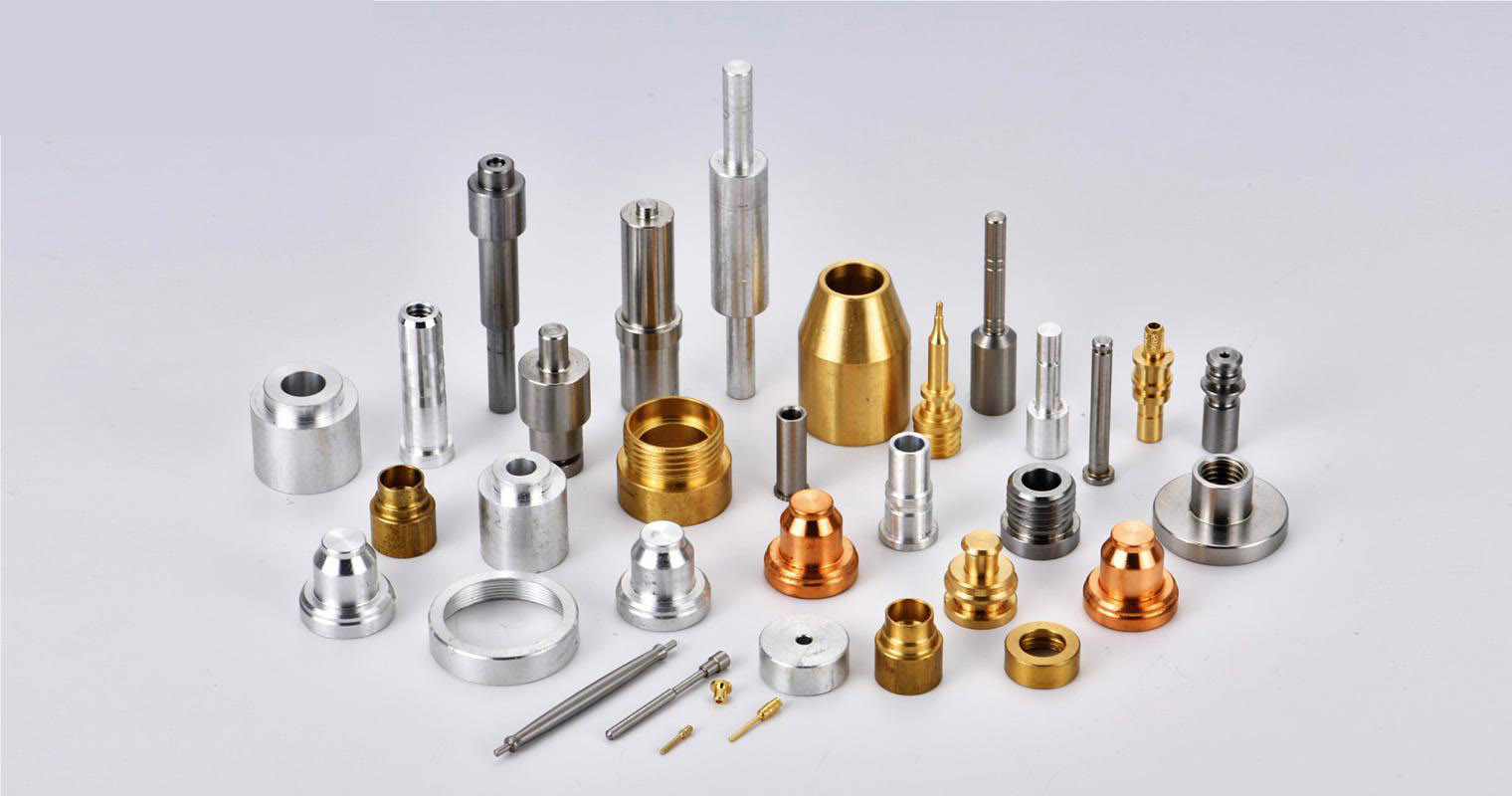

cnc lathe proof

2. Optimize Cutting Parameters

 Increase spindle speed to enhance cutting smoothness and reduce surface roughness.

 Lower feed rates during finishing passes for tighter surface texture.

 Use minimum depth of cut in final passes to minimize tool pressure and workpiece deflection.

3. Enhance Coolant Delivery and Lubrication

 Use high-pressure coolant to effectively clear chips and reduce heat in the cutting zone.

 Consider Minimum Quantity Lubrication (MQL) or high-performance cutting fluids for improved surface finish on fine features.

 Ensure coolant is precisely directed at the tool-tip to maximize effectiveness.

4. Ensure Guide Bushing and Workpiece Stability

 A properly adjusted guide bushing is critical for minimizing deflection and chatter, especially in long, slender parts.

 Select guide bushings with tight but smooth clearance for stable support.

 For ultra-fine components, consider using intermediate supports or steady rests to enhance rigidity.

5. Control Vibration and Machine Dynamics

 Secure the machine base and isolate it from external vibrations.

 Use short tool overhang to reduce tool deflection.

 Apply damped tool holders or anti-vibration tooling when needed to suppress chatter.

6. Leverage Multi-Axis Synchronization

 Utilize the main and sub-spindle efficiently to reduce part transfers and minimize surface inconsistencies.

 Optimize the toolpath to avoid redundant passes and reduce heat build-up on the part surface.

 Perform back-working operations with the same precision as front operations to ensure uniform finish.

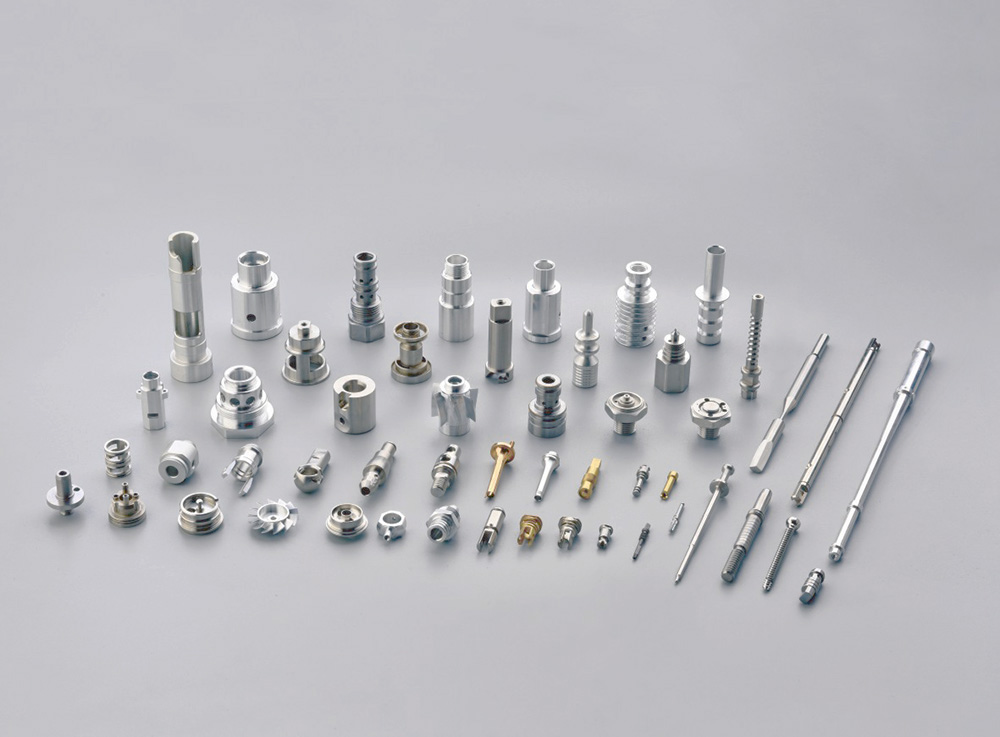

swiss cnc lathe proof

7. Utilize In-Process Measurement and Feedback

 Integrate in-machine measuring probes or automatic surface monitoring systems for consistent quality control.

 Apply real-time compensation strategies to maintain surface roughness within specification throughout long production runs.



Conclusion

When it comes to micro-part manufacturing, surface finish is a key quality metric that directly impacts product performance, assembly fit, and reliability — especially in industries such as medical, aerospace, and electronics. By combining Swiss lathe capabilities with the right tools, parameters, and process controls, manufacturers can achieve exceptional surface quality at scale.
