How to Choose the Right Swiss CNC Lathe for Your Production Needs

From Tooling Layouts to Control Systems — What Really Matters

Introduction: Why Choosing the Right Swiss-Type Lathe Matters

Swiss-type CNC lathes are highly specialized, high-precision machines often used in industries like medical, aerospace, electronics, and automotive. But with dozens of configurations available, selecting the wrong model could result in underutilized capacity, production bottlenecks, or poor ROI.

This guide breaks down the key technical factors — from turret configuration to CNC controller — so you can confidently choose a Swiss lathe that fits your production environment.



1. Spindle and Guide Bushing Configuration

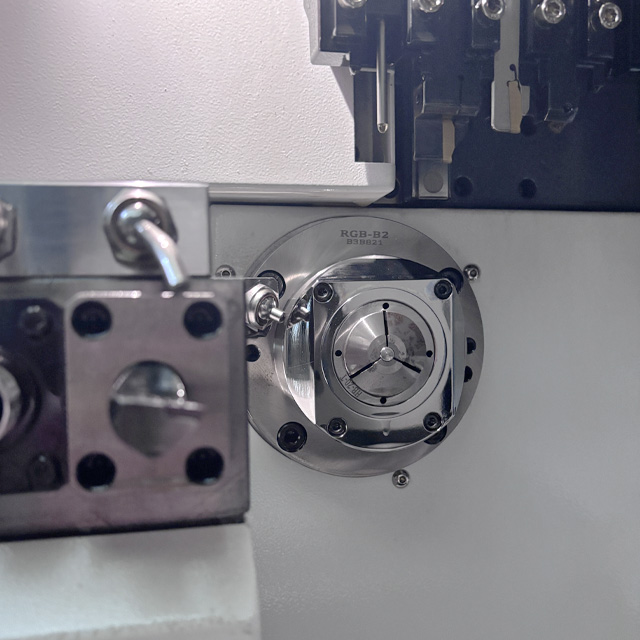

·Fixed vs. Sliding Guide Bushing
Sliding bushings are ideal for long, slender parts as they support the workpiece close to the cutting zone. Some modern models allow switching between guide-bushing and non-guide-bushing modes for flexibility.

·Main Spindle Power & Speed
High RPM and torque are essential for hard materials or fine micro-machining. Choose based on your most demanding part specification.



2. Tooling System – Turret Configuration

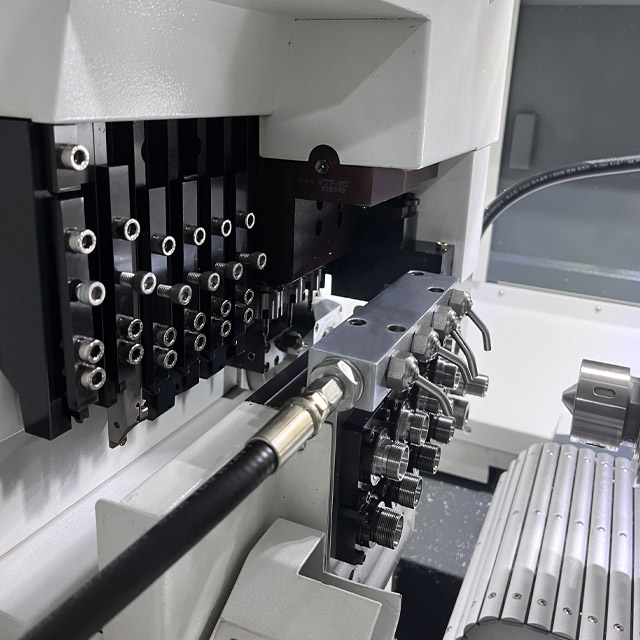

·Live Tooling (Driven Tools)
Live tools enable milling, drilling, and tapping without secondary operations. This is essential for complex parts that require cross and end-face machining.

·Single vs. Dual Turret (Upper & Lower)
A dual turret setup allows for simultaneous front/back machining, reducing cycle time and increasing throughput.

·Tool Positions
Typical machines offer 12–32 tool stations. More complex parts may need a modular or gang tool setup.



3. Synchronous Machining Capabilities

·Sub-Spindle Integration
Sub-spindles are critical for back-side operations without manual repositioning. Look for machines that support real-time synchronization.

·○Simultaneous Milling + Turning
Modern Swiss lathes allow for overlapping cycles — like turning on one spindle while milling on the other.



4. CNC Control System – The Heart of Your Machine

Controller	Key Features	Ideal For
FANUC	Global standard, stable, widely supported	High-end users, export-oriented shops
Mitsubishi	Cost-effective, user-friendly	Medium-volume manufacturers
Siemens	Strong European interface, 3D simulation	Aerospace, advanced industries
Syntec / LNC	Affordable, good for basic automation	Entry-level shops, price-sensitive markets



·Smart Functions to Consider:

｡Remote monitoring

｡IoT integration / MES-ready

｡Multi-language user interfaces

｡Built-in part simulation & macros



5. Optional Attachments – Small Upgrades, Big Results

·Bar Feeder — For unmanned high-volume operations

·Oil Pump / Coolant System — For heat-sensitive or high-speed processes

·Chip Conveyor — Keeps the working area clean, reduces downtime

·Mist Collector — Improves air quality and protects electronics

·Servo Tailstock / Power Chucks — For non-bar work and irregular parts



Conclusion: Fit Over Fancy

Don't choose the most expensive lathe — choose the one that best fits your part geometry, batch size, material, and operator skill level. The most efficient shops match capabilities to needs and extract full value from their machines.

Pro Tip: Ask your supplier to run a live demo with your part drawing or sample material before purchase.
