How can I turn on a Swiss lathe?

When you get a swiss lathe, isn't the first thing you want to know is how you should turn it on and make it earn money for you? So let's take a look at what you need to pay attention to in order to start a swiss lathe!

1. Preparation

Getting to know the machine

• Read the manual: Familiarize yourself with the specific model and functions of the Swiss lathe.

• Check the machine: Check that the spindle, guide bushings, turret, cooling system and control panel are working properly.

Preparing tools and materials

• Selection of tools: Choose the right tools for the operation (e.g. lathe tools, drills, taps).

• Material Setup: Ensure that the bar stock is compatible with the lathe and prepare the necessary clamping tools (e.g. collets or guide bushings).

Safety measures.

• Wear appropriate protective equipment (safety glasses, gloves, etc.).

• Ensure that the workspace is clean and free from obstacles.



2. Starting the machine

Turning on the power and checking

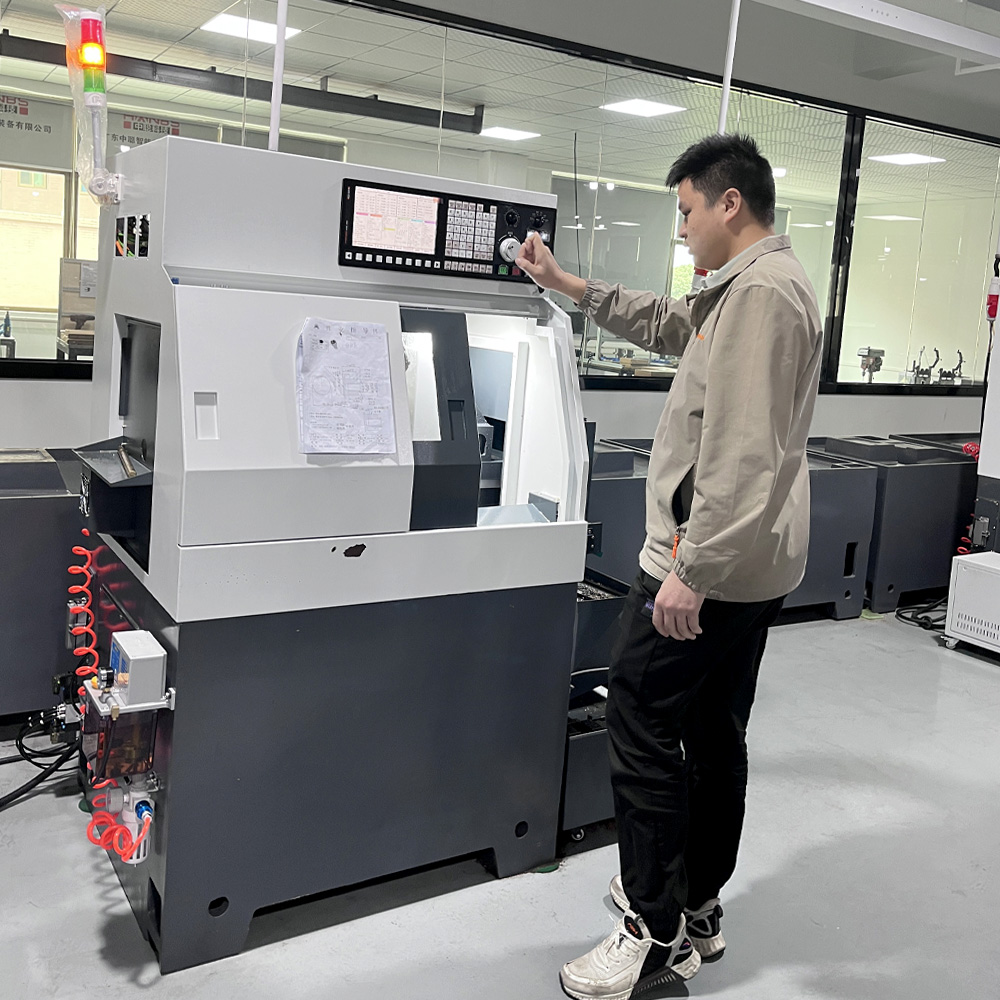

• Turn on the power: Activate the main power switch.

• Running the start-up program: Allow the system to perform a self-test after turning on the machine.

• Check the coolant system: Make sure there is enough coolant in the tank and that the pump is working properly.

Setting Up the Machine

•Adjust guide bushing: Set guide bushings to match bar diameter for proper alignment and support.

• Load material: Insert bar stock into spindle and secure with collet or fixture.

CHECK TOOLS: Set up and align tools as required by machining program.



3. Load Program

Uploading the machining program

1. Use the machine controller to upload the machining program (usually G-code generated by the CAM software).

2. Check the program to ensure that the feed rates, spindle speeds and toolpaths are correct.

Setting reference points

1. Define the workpiece zero point and set tool offsets (e.g. G54, G55).

2. Adjust the spindle start position according to the bar length and guide bush setting.



4. Trial run and simulation

Trial run

1. Perform a simulation run (without cutting material) to check for collisions or programming errors.

2. Verify tool paths, tool changes, and approach movements.

Parameter Adjustment

Based on the results of the test run, fine-tune cutting speeds, feed rates, or workpiece offsets as necessary.



5. Start machining

Starting the spindle

1. Start the spindle and gradually increase to the specified speed.

2. Check that the guide bushings are holding the bar stock securely and that there is no excessive vibration.

Run the program

1. Press the Cycle Start button to start the machining program.

2. Monitor the operation, especially during the initial cut, to ensure proper performance and quality.

Automatic feed (if applicable)

For machines equipped with an automatic bar feeder, check the feeder for proper operation and adjust the feed parameters as needed.



6. Quality Checks

Pause and check

1. Stop the machine and inspect the machined part.

2. Use calipers, micrometers, or other measuring tools to check dimensional accuracy and surface finish.

Parameter Adjustment

Make necessary adjustments to the program or machine settings based on the inspection results.



7. Stopping and maintenance

Shutting down the machine

1. Stop the spindle and complete the program cycle.

2. Shut down the cooling system and clean the workspace.

Routine Maintenance

• Remove swarf and chips from the machine.

• Check guide bushings and tools for wear and replace if necessary.

• Ensure that the lubrication system is functioning properly.

Key considerations

1. Bar and guide fit: Ensure that the bar diameter is properly matched to the guide for accuracy and stability.

2. Monitor operation: Watch for tool wear, vibration, or interruption of coolant flow during machining.

3. Document Settings: Record machining parameters, tool life and program changes for future reference and optimization.



Following these steps ensures that your Swiss lathe operates safely, efficiently and accurately, resulting in high quality production.



Starting a Swiss lathe is not the hard part, the real challenge is to use the Swiss lathe to produce the parts you or your customers want, and to achieve what you want or what your customers want. There is still a long way to go to learn about the swiss lathe, and the swiss lathe is constantly evolving to meet the needs of the times, so as a swiss lathe manufacturer or operator or maintenance personnel need to keep up with the times and make progress.
