How Do Swiss Type CNC Lathes Work?

How Do Swiss Type CNC Lathes Work?

In the world of precision machining, Swiss type CNC lathes stand out for their ability to produce highly intricate and precise components. Originally developed for the watchmaking industry in Switzerland, these machines have since found applications in various fields such as medical device manufacturing, aerospace, and automotive industries. But how exactly do these sophisticated machines operate?

The Basics of Swiss Type CNC Lathes

Swiss type CNC lathes are characterized by their unique design, which involves a sliding headstock and a guide bushing. Unlike traditional CNC lathes where the workpiece is fixed, the Swiss lathe's workpiece is held in a collet and moves longitudinally along the Z-axis. This design allows the cutting tools to engage very close to the point of support, minimizing deflection and achieving exceptional precision.

Key Features and Advantages

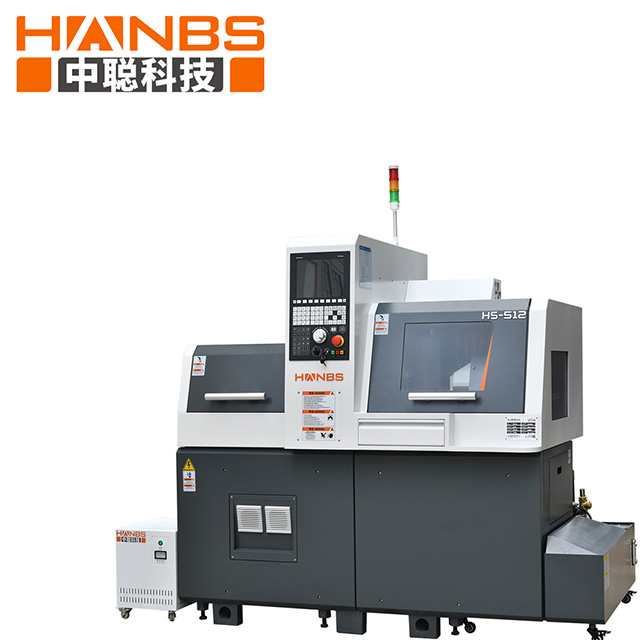

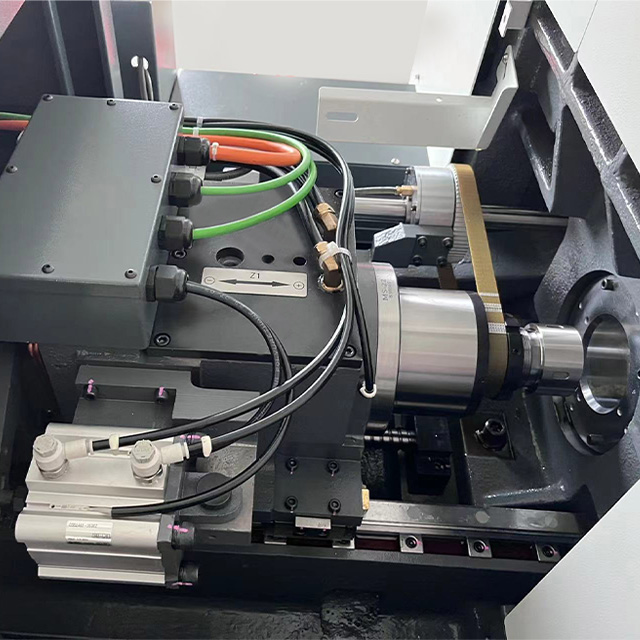

1. Sliding Headstock: The defining feature of Swiss type lathes is the sliding headstock. This component moves the workpiece back and forth through a guide bushing, which provides continuous support. This arrangement is ideal for machining long, slender parts without the risk of bending or vibration.




2. Guide Bushing: The guide bushing is critical for maintaining the precision of the machining process. It supports the workpiece very close to the cutting tool, ensuring that even the slightest deflection is minimized. This feature is especially useful for producing small, intricate parts with tight tolerances.

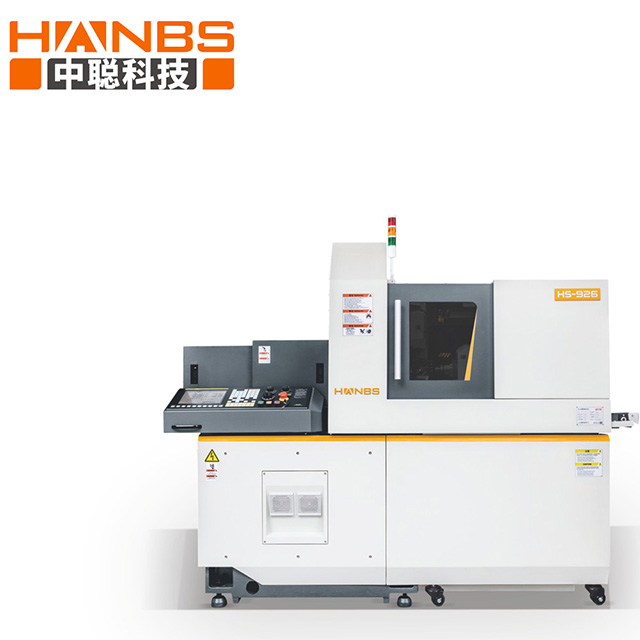

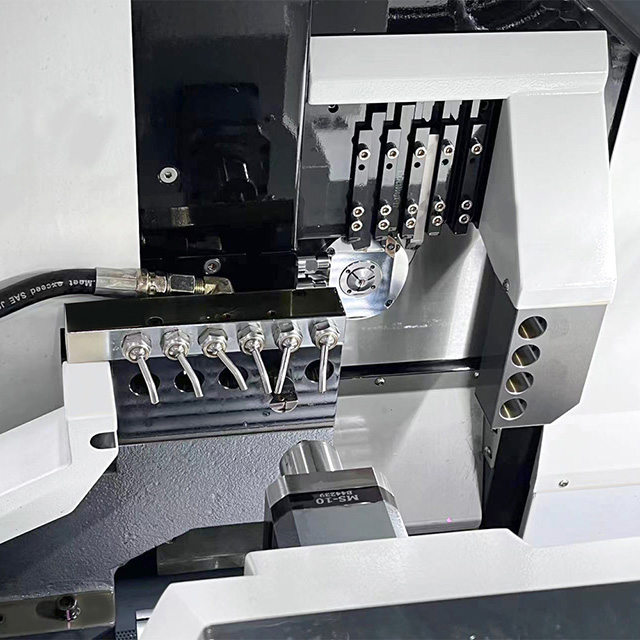

3. Multiple Tools: Swiss type lathes are equipped with multiple tools that can perform various operations such as turning, milling, drilling, and tapping. The ability to carry out multiple operations without needing to transfer the workpiece to different machines greatly enhances efficiency and accuracy.




4. Simultaneous Machining: One of the standout capabilities of Swiss lathes is the ability to perform simultaneous machining operations. With multiple tools working in concert, these machines can significantly reduce cycle times and boost productivity.

How They Work

The process begins by feeding a bar stock through the headstock into the guide bushing. The headstock then slides along the Z-axis, advancing the material through the guide bushing to the cutting tools. As the workpiece moves, various tools engage it from different angles and positions, performing the required machining operations.

The close support of the guide bushing means that the cutting tools can work very close to the chuck, reducing the chances of deflection and ensuring that the final product adheres to the tightest of tolerances. Additionally, the machine can switch between tools quickly, allowing for complex parts to be completed in a single setup.

Applications and Impact

Swiss type CNC lathes are invaluable in industries where precision is paramount. In the medical field, they produce critical components such as bone screws and dental implants. In the aerospace industry, they manufacture complex parts that require exceptional accuracy and reliability. The automotive industry also benefits from these machines, particularly for producing small, high-precision parts.

The impact of Swiss type CNC lathes on manufacturing cannot be overstated. Their ability to produce high-quality parts quickly and efficiently has revolutionized industries that rely on precision engineering. As technology continues to advance, these machines are likely to become even more integral to modern manufacturing processes.

In conclusion, Swiss type CNC lathes represent a pinnacle of precision engineering. Their unique design and capabilities make them indispensable for producing intricate and accurate components. As industries continue to demand higher precision and efficiency, the role of Swiss type CNC lathes in manufacturing will only continue to grow.
