How Are Precision Measuring Tools Cared For? Insights From Swiss Type CNC Lathes

How Are Precision Measuring Tools Cared For? Insights from Swiss Type CNC Lathes

Precision measuring tools are vital in ensuring the accuracy and quality of machined parts. Swiss type CNC lathes, known for their high precision and efficiency, rely heavily on these tools. This article explores the unique features of Swiss type CNC lathes and how the principles of caring for precision measuring tools apply to their maintenance and operation.

Overview of Swiss Type CNC Lathes

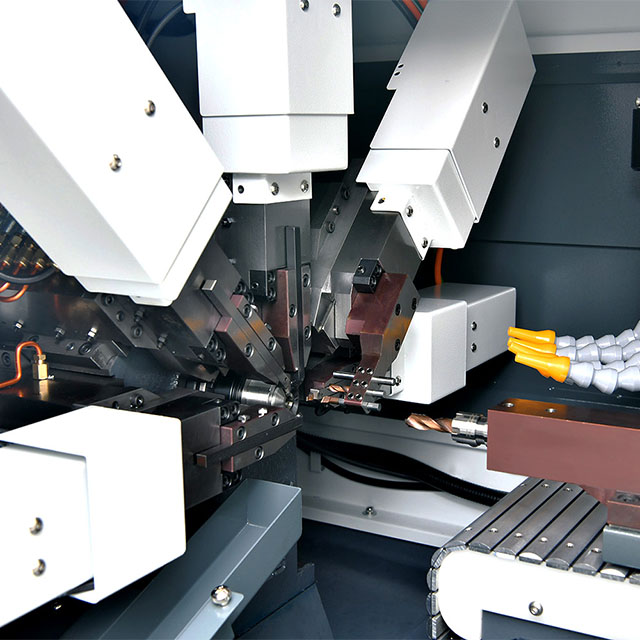

Swiss type CNC lathes are specialized machines designed for high-precision turning operations. Originating from the Swiss watchmaking industry, these lathes have evolved to handle complex and intricate parts required in various high-precision industries, such as medical device manufacturing, aerospace, and electronics.

Key Features of Swiss Type CNC Lathes

1. High Precision: Swiss lathes achieve exceptional precision through a combination of advanced design and robust construction. The use of a sliding headstock allows for the workpiece to be machined close to the guide bushing, minimizing deflection and vibration.

2. Multi-Axis Capabilities: These lathes typically feature multiple axes, including X, Y, Z, and C axes. This multi-axis capability enables the simultaneous execution of multiple machining operations, such as turning, milling, and drilling, in a single setup.

3. Small Diameter Workpieces: Swiss lathes excel at machining small diameter and long, slender parts. The guiding bushing provides continuous support for the workpiece, ensuring stability and accuracy throughout the machining process.

4. Complex Geometries: The advanced control systems of Swiss lathes allow for the creation of complex geometries and intricate features, making them ideal for parts with tight tolerances and detailed designs.

Caring for Precision in Swiss Type CNC Lathes

Just as precision measuring tools require meticulous care, maintaining the precision and performance of Swiss type CNC lathes involves several key practices:

1. Regular Calibration and Maintenance:

• Calibration: Regularly calibrate the machine to ensure all axes and components are operating within specified tolerances. This practice helps maintain the machine's accuracy and reliability.

• Maintenance: Perform routine maintenance, such as cleaning, lubrication, and inspection of critical components. Proper maintenance prevents wear and tear, reducing the risk of inaccuracies.

2. Proper Handling and Storage:

• Tool Handling: Handle cutting tools and inserts with care to prevent damage. Store them in protective cases or designated holders to avoid contamination and physical damage.

• Workpiece Handling: Ensure that workpieces are securely mounted and properly aligned to prevent misalignment and inaccuracies during machining.

3. Environmental Control:

• Temperature and Humidity: Maintain a controlled environment with stable temperature and humidity levels. Fluctuations can affect the machine's components and lead to dimensional inaccuracies.

• Cleanliness: Keep the machining area clean and free from debris, dust, and contaminants. Regularly clean the machine's interior and exterior surfaces to prevent buildup that could interfere with precision.

4. Tooling Management:

• Tool Selection: Choose the appropriate tooling for each job, considering factors such as material, geometry, and cutting conditions. High-quality tools contribute to better surface finishes and longer tool life.

• Tool Wear Monitoring: Monitor tool wear and replace worn tools promptly. Dull or damaged tools can compromise the accuracy and quality of the machined parts.

5. Operator Training:




• Skill Development: Ensure that operators are well-trained in the use of Swiss type CNC lathes and understand the importance of precision. Skilled operators can identify potential issues and take corrective actions to maintain accuracy.

• Best Practices: Promote best practices for machine operation, including proper setup procedures, tool changes, and quality control measures.

Conclusion

Swiss type CNC lathes represent the pinnacle of precision machining, and their performance is intrinsically linked to the care and maintenance of the machine and its components. By applying the same principles used in caring for precision measuring tools—regular calibration, proper handling, environmental control, tooling management, and operator training—manufacturers can ensure that their Swiss type CNC lathes continue to deliver the high accuracy and quality required in today's demanding industries.
