High-Efficiency Threading with Swiss Whirling

Views: 0     Author: Site Editor     Publish Time: 2025-07-31      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1. What is Whirling Milling?

Whirling milling is a high-speed, high-efficiency thread cutting process, especially suitable for long, slender components that are difficult to machine using conventional turning. A whirling head with multiple cutting tools rotates at high speed around the workpiece at a set angle while the part slowly advances axially, enabling precise and fast thread formation.



2. Why Combine Whirling with Swiss CNC Lathe?

Swiss-type CNC lathes are ideal for whirling applications due to their sliding headstock, guide bushing, and multi-axis control. These features offer superior support and precision when machining long, small-diameter parts.

When integrated with whirling heads, Swiss CNC lathes offer:

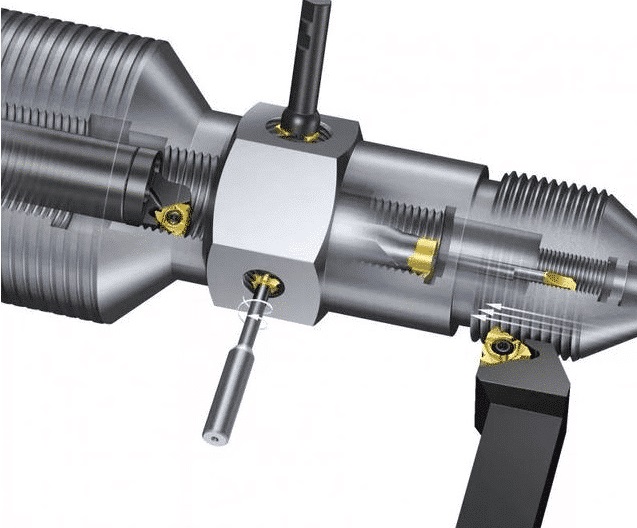

thread-milling

3. Key Advantages of Whirling on Swiss CNC Lathes

High Productivity

Whirling is several times faster than traditional threading — perfect for mass production of parts like bone screws, dental implants, and precision fasteners.

Ideal for Long, Thin Parts

The guide bushing system in Swiss CNC lathes prevents vibration, ensuring excellent dimensional accuracy on slender parts.

Excellent Surface Finish

The unique cutting angle and multi-blade setup of whirling heads provide smooth, burr-free thread surfaces.

Flexible Thread Geometry

Capable of machining multi-start threads, custom pitches, and non-standard profiles, even in hard-to-machine materials like titanium or stainless steel.

Preferred in High-Value Industries

Commonly used in medical, aerospace, precision engineering, and automotive sectors.



4. Typical Applications

Industry

Part Type

Material

Highlights

Medical Devices

Bone screws, pins

Titanium, 316L

High precision, clean threads

Aerospace

Micro shafts

Inconel, alloys

Multi-start threads, strong materials

Automotive

Threaded shafts

Steel, stainless

High volume, efficient cycle times




5. Key Considerations When Using Whirling

Precise tool angle adjustment is critical to match the thread pitch

Proper dynamic balancing of the whirling head ensures surface finish and tool life

Cutting parameters must match material type and thread spec

Effective coolant and chip evacuation are necessary due to high-speed cutting

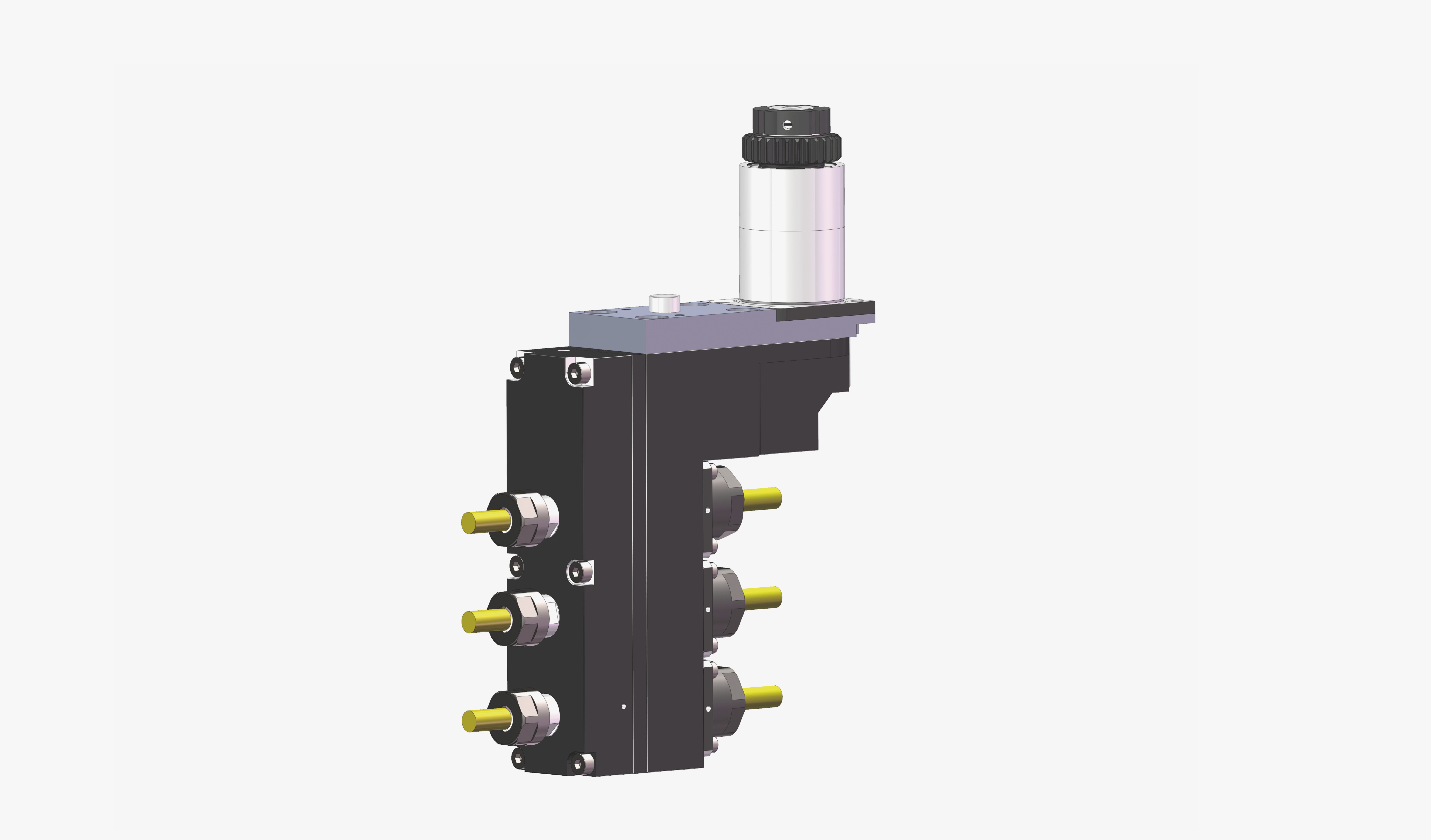

 Drilling and milling unit

6. Conclusion

Whirling milling combined with Swiss CNC lathes offers a superior threading solution for industries demanding precision, efficiency, and consistency. Whether you're in medical implant manufacturing, aerospace machining, or micro-mechanical production, adopting whirling technology will give you a significant edge in both quality and throughput.



Interested in integrating whirling milling into your CNC production line?
Contact us for tooling recommendations, machine configurations, and sample project support.
