Gang Tooling vs Live Turret: Which Suits Your Swiss Lathe?

Choosing the right tooling configuration is a critical decision in Swiss-type CNC machining. Whether you're focused on producing high-precision medical components, aerospace parts, or micro-mechanical assemblies, the choice between gang tooling and a live turret system can significantly affect productivity, complexity, and cost-efficiency.

In this article, we’ll explore the strengths and trade-offs of each system and help you decide which configuration best fits your manufacturing needs.



What Is Gang Tooling?

Gang tooling consists of a linear arrangement of fixed tools mounted directly onto the machine's cross slide. This compact, rigid setup enables fast tool changes and extremely short cycle times—ideal for high-volume, small-part production.

Key Advantages:

• High speed & rigidity: Perfect for small diameter parts with simple geometries.

• Short cycle times: No turret indexing; tools are ready in position.

• Lower maintenance: Fewer moving parts means lower downtime.

• Cost-effective: Simpler mechanical design reduces machine and tooling costs.

Limitations:

• Limited tool positions: Fixed capacity can restrict part complexity.

• No milling capability: Pure turning operations only unless combined with minimal live tooling options.

• Challenging for complex geometries: Not ideal for off-center holes or multi-face features.

What Is a Live Turret?

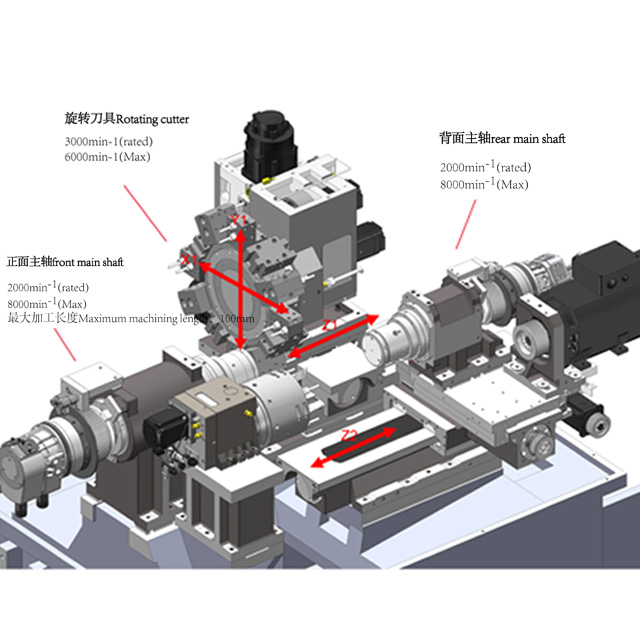

A live turret system allows multiple tools—some powered—to be indexed and used for turning, milling, drilling, and tapping in a single setup. Live turrets are commonly found on more advanced Swiss-type machines capable of multitasking operations.

Key Advantages:

• Increased versatility: Handles complex parts requiring cross-drilling, slotting, or off-axis machining.

• Expanded tool capacity: More positions = more operations per cycle.

• Reduced secondary processing: Enables full part completion in one setup.

Limitations:

• Higher machine cost: More sophisticated mechanics and tooling systems.

• Longer cycle times: Indexing and coordination between axes adds time.

• Requires more programming expertise: CAM setup is more involved.



Which Configuration Fits Your Production Best?

Application Type	Recommended Configuration
High-volume, simple shafts & pins	✅ Gang Tooling
Complex medical or aerospace parts	✅ Live Turret
Small footprint, cost-sensitive production	✅ Gang Tooling
Multifeatured, multi-process part families	✅ Live Turret
Operations requiring milling, engraving, slots	✅ Live Turret (essential)
Rapid cycle times with minimal tool changes	✅ Gang Tooling

The choice largely comes down to the type of parts you produce, volume of production, and required machining complexity.



Hybrid Configurations: The Best of Both Worlds?

Some modern Swiss machines now offer hybrid tooling systems that combine gang tooling with a mini turret or limited live tool stations. This configuration gives manufacturers the speed of gang tools and the flexibility of live machining, without fully committing to a turret-based system.

If your production includes mostly simple parts but occasionally requires features like cross holes or slots, this hybrid approach may be ideal.



Final Thoughts

There’s no universal answer to which system is “better”—it all depends on your specific business goals, part complexity, and available resources.

• If you prioritize speed, simplicity, and cost-efficiency, a gang tooling setup will serve you well.

• If your focus is on high-mix, high-precision, complex parts, a live turret system will unlock the flexibility and integration you need.
