From Bar Feeders to Robots: Automating Swiss CNC the Right Way

As global manufacturing evolves, efficiency, precision, and scalability are becoming non-negotiable. Swiss-type CNC lathes, known for their ability to produce small, complex, high-precision parts, are a key asset in industries such as medical devices, aerospace, automotive, and electronics. But even the most advanced CNC machine can’t unlock its full potential without automation.

This article outlines the correct path to automating Swiss CNC operations — starting with bar feeders and extending all the way to robotic systems — to help you achieve lights-out manufacturing and greater profitability.



1. Understand the Nature of Swiss CNC

Swiss-type lathes differ from conventional CNC lathes in one crucial way: the workpiece is supported close to the cutting tool by a guide bushing while the stock itself moves in the Z-axis. This makes them ideal for machining long, slender, and intricate components.

Automation Challenges:

Frequent material changes

High-speed cycles requiring fast part handling

Manual intervention during off-hours or long runs

To overcome these limitations, automation must handle both material input and finished-part output efficiently.



2. Start with Bar Feeders – The First Step in Automation

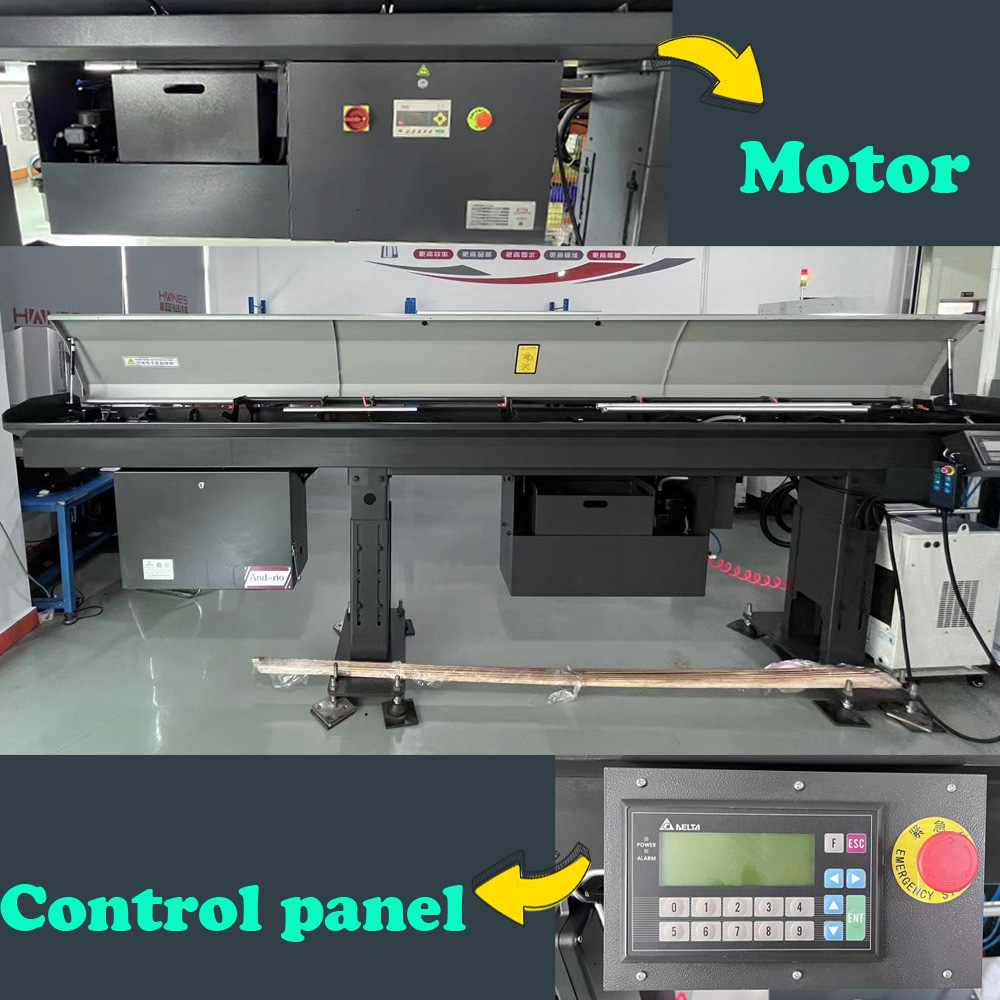

What Does a Bar Feeder Do?

A bar feeder automatically loads raw material (bars) into the Swiss lathe, allowing continuous production without manual loading.

Key Considerations:

Compatibility: Must match the diameter range and spindle capacity of your CNC machine

Feeding Precision: Accurate positioning ensures machining consistency

Capacity: Larger magazines support longer unattended runs

Benefits:

Reduced downtime between bar changes

Enables extended production without operator input

Minimizes material waste with optimized remnant handling



3. Automate Finished-Part Handling

Part Collection Systems

Swiss lathes often include basic part-catchers, but for longer unattended runs, advanced solutions are necessary:

Belt conveyors for continuous transfer

Vibration trays for delicate components

Chute systems that align and stack parts gently

These ensure finished parts are collected safely and efficiently without collisions or defects.



Industrial Robots – The Advanced Stage

When your production requires even more flexibility and speed, robots become the centerpiece of your automation cell.

Common Use Cases:

Loading/unloading parts between multiple machines

Post-process handling: inspection, cleaning, sorting

Managing mixed-product workflows with minimal setup time

Key Integration Factors:

Communication: Seamless CNC-to-robot data exchange

Cycle Time Alignment: Robot motion must sync with CNC cycle

End-of-Arm Tooling: Grippers should accommodate various part shapes/sizes

Safety: Light curtains, fences, or cobots for human-safe operation



4. Tie it All Together with MES Integration

Even the best automation hardware needs a smart system to manage it.

A Manufacturing Execution System (MES) connects all your automation elements, providing:

Real-time machine status and production tracking

Automatic job scheduling and tool change alerts

Detailed reports on downtime, output, and performance

MES integration turns your CNC cell into a data-driven production unit — capable of optimizing itself over time.



5. Deployment Strategy and Common Pitfalls

Best Practices:

Begin with one CNC machine and scale up

Focus on automating bottleneck operations first

Partner with integrators familiar with Swiss-type automation

Pitfalls to Avoid:

Underestimating the need for changeover flexibility

Overlooking ROI calculations based on real production data

Failing to plan for error handling during off-hours



6. Example: A Swiss CNC Automation Cell

A fully automated Swiss CNC cell may look like this:

1.Bar feeder continuously loads raw material

2.Swiss lathe performs high-precision machining

3.Conveyor system transfers finished parts

4.Robot arm picks and places parts into bins or inspection stations

5.MES software manages workflows, logs data, and sends alerts

Such a system can run lights-out — nights, weekends, or holidays — with minimal operator intervention.



Conclusion

Swiss CNC lathes offer unmatched precision — but without automation, their potential remains limited. By implementing the right automation strategy — starting with bar feeders and scaling up to robot integration — manufacturers can increase output, lower labor costs, and build smart, future-ready production environments.

Automation isn’t just about adding machines. It’s about building systems that think, adapt, and scale with your business.
