Common Swiss Lathe Machining Errors and How to Fix Them

Introduction

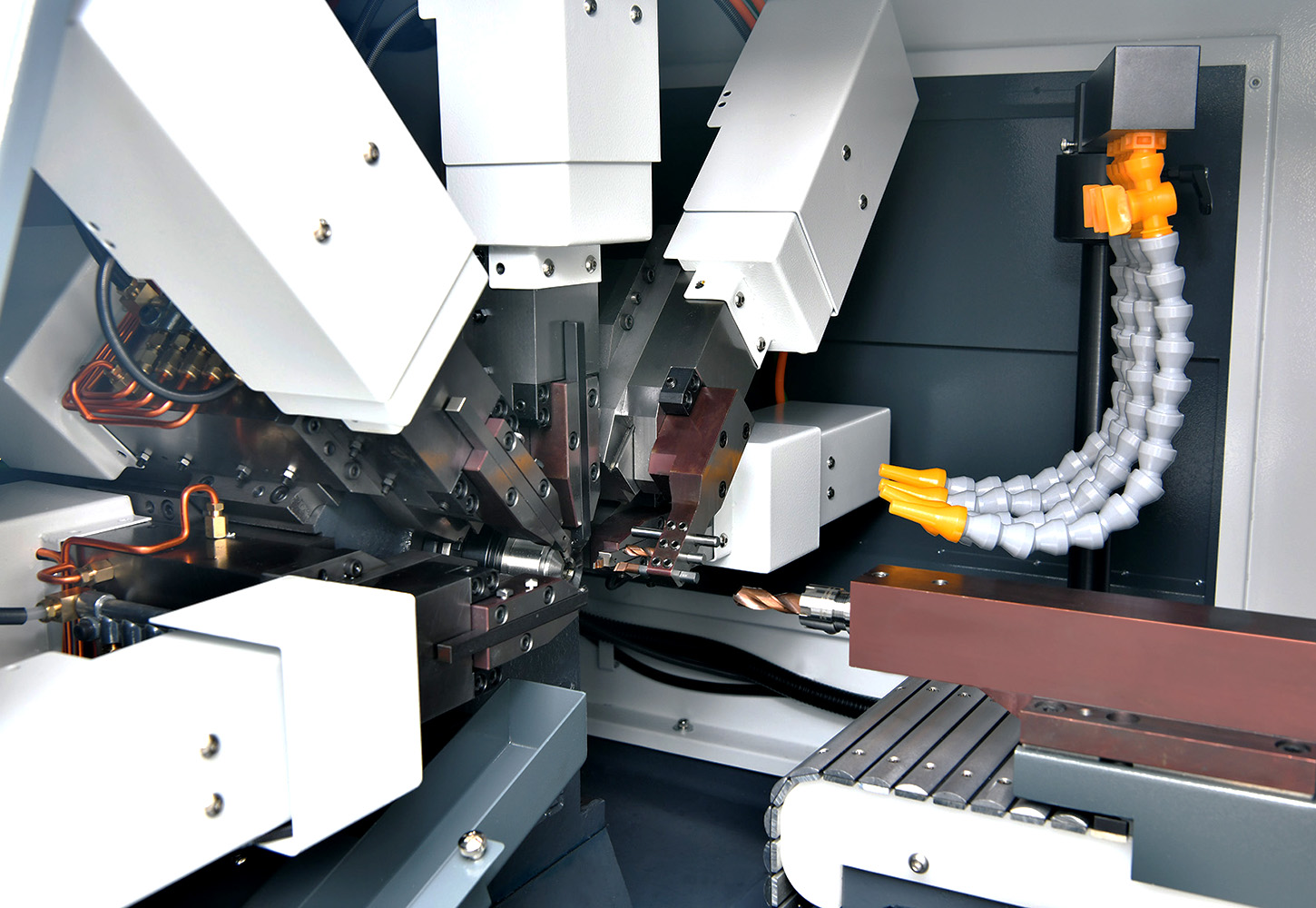

Swiss-type CNC lathes are widely known for their unmatched precision and efficiency in manufacturing small, complex parts for industries such as medical, aerospace, defense, and electronics. However, due to their high complexity and tight tolerances, even small setup mistakes or operational issues can lead to part defects or productivity losses.

This article outlines some of the most common Swiss lathe machining errors and provides practical troubleshooting solutions to help improve your machining results.

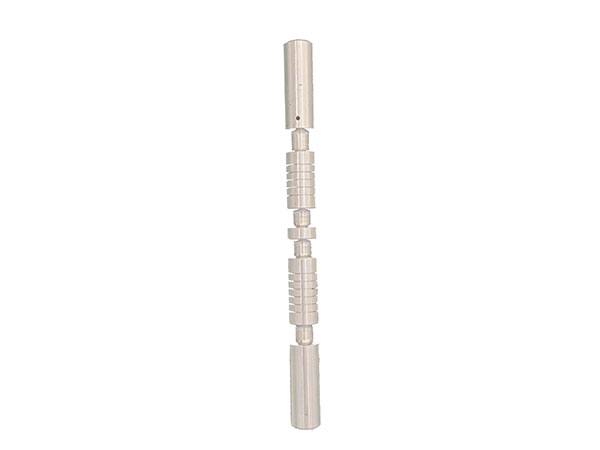

1. Inconsistent Part Dimensions (Especially on Long Shafts)

Issue:
Parts show dimensional variation within the same batch, particularly with long and slender components.

Possible Causes:

• Improper guide bushing clearance

• Material diameter variation

• Coolant temperature fluctuations causing thermal expansion

Solutions:

• Adjust guide bushing clearance to ~3–5 μm

• Use material from the same lot with tight diameter tolerance

• Implement temperature-controlled coolant system



2. Poor Surface Finish

Issue:
Parts have visible tool marks, chatter, or rough surfaces that do not meet finish specifications.

Possible Causes:

• Worn or damaged cutting tools

• Incorrect cutting parameters (too aggressive feed or depth)

• Insufficient material support causing vibration

Solutions:

• Replace or inspect tool edges for wear

• Optimize feed rates and surface speed

• Tighten guide bushing or reduce unsupported material length



3. Incomplete or Deformed Threads

Issue:
Threads are poorly formed, have missing turns, or appear damaged.

Possible Causes:

• Incorrect thread cycle or tool offset

• Improper synchronization between main and sub-spindle

• Inadequate coolant pressure or chip evacuation

Solutions:

• Verify G76/G92 parameters and tool compensation values

• Check spindle sync timing and calibration

• Use high-pressure coolant (>70 bar) to ensure clean threading



4. Frequent Tool Breakage

Issue:
Drills or turning tools break frequently, especially when cutting hard materials like titanium or stainless steel.

Possible Causes:

• Excessive cutting force or aggressive feed

• Inappropriate tool material or coating

• Low coolant pressure or poor chip removal

Solutions:

• Reduce feed rate and optimize cutting parameters

• Select tools with coatings suited to the material (e.g., TiAlN for titanium)

• Use high-pressure through-tool coolant systems



5. Excessive Part Runout

Issue:
Parts show runout or concentricity issues, particularly on the front or back ends.

Possible Causes:

• Misaligned material feed or bar not centered

• Long unsupported lengths beyond the guide bushing

• Spindle collet misalignment

Solutions:

• Check alignment of bar stock and guide bushing

• Reduce feed length or segment the machining process

• Regularly calibrate and maintain spindle collets



Conclusion

While Swiss-type lathes are powerful tools for precision machining, maintaining optimal performance requires attention to detail in setup, tool management, and machine parameters. By identifying and addressing these common issues early, you can improve productivity, reduce scrap rates, and extend tool life.

If you're new to Swiss machining or looking to upgrade your processes, implementing systematic error checks and maintenance routines is essential for consistent high-quality results.
