Centering machine manufacturers: the structural characteristics of CNC centering machine parts

Centering machine manufacturers: the structural characteristics of CNC centering machine parts, let Zhongcong Intelligent Equipment to tell you about it!

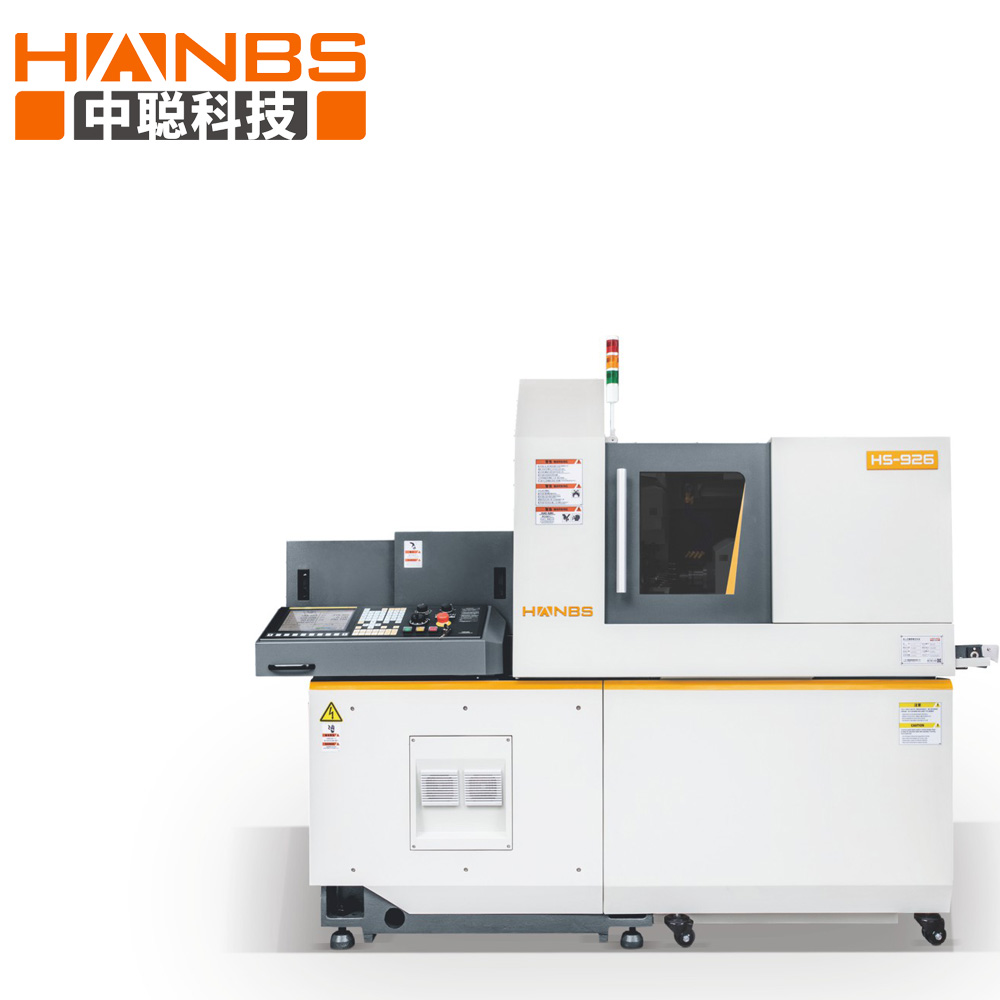

The CNC walking center machine has the functions of high rigidity turning, milling, and one-time clamping, which can complete the complex machining such as external round, end face, threading, cutting, cross milling, drilling, tapping, and drilling, tapping, and boring of the cut-down end face of the workpiece with high rigidity. In addition, the core tool layout adopts the structure of two-axis control tool holder layout, which is simple in structure, fast in tool change and high in reliability. After the part is cut off, the auxiliary spindle can grab the part and complete drilling, boring, milling, end eccentric machining and other processes on the back of the part's cutting surface. Compared with similar machine tools, it can greatly reduce the number of feed times, a feed can be completed for the entire length of the parts processing, improve processing efficiency. Generally applicable to the length and diameter of the "slender shaft" parts and a large number of large varieties, high precision "small" parts processing tasks.

Structural characteristics of CNC centering machine accessories.

1. The CNC traveling machine is equipped with three-axis drilling function, which can complete the drilling of shaft ends and tapping of parts.

2. CNC walking machine is equipped with high-speed precision synchronous guide bushings, which enables it to complete a large number of precision machining of steel and stainless steel parts and realize high-speed cutting of high-quality parts.

3.CNC walking machine layout adopts two-axis control tool holder layout structure, simple structure, fast tool change, high reliability. The z-axis stroke of the machine is very long, up to 230mm. therefore, the traveling machine can complete the full-length machining when machining longer parts, reducing the number of feeds and improving machining efficiency.

4.CNC machine tool feeding part can be equipped with automatic feeding device, feeding part can be installed with short film feeder and long film feeder, in order to realize the operation of one person, taking into account the multi-machine "multi-machine" processing mode, for the factory to save human resources. It can also be equipped with additional facilities such as automatic chip removal to form a flexible processing line and complete automated processing.
