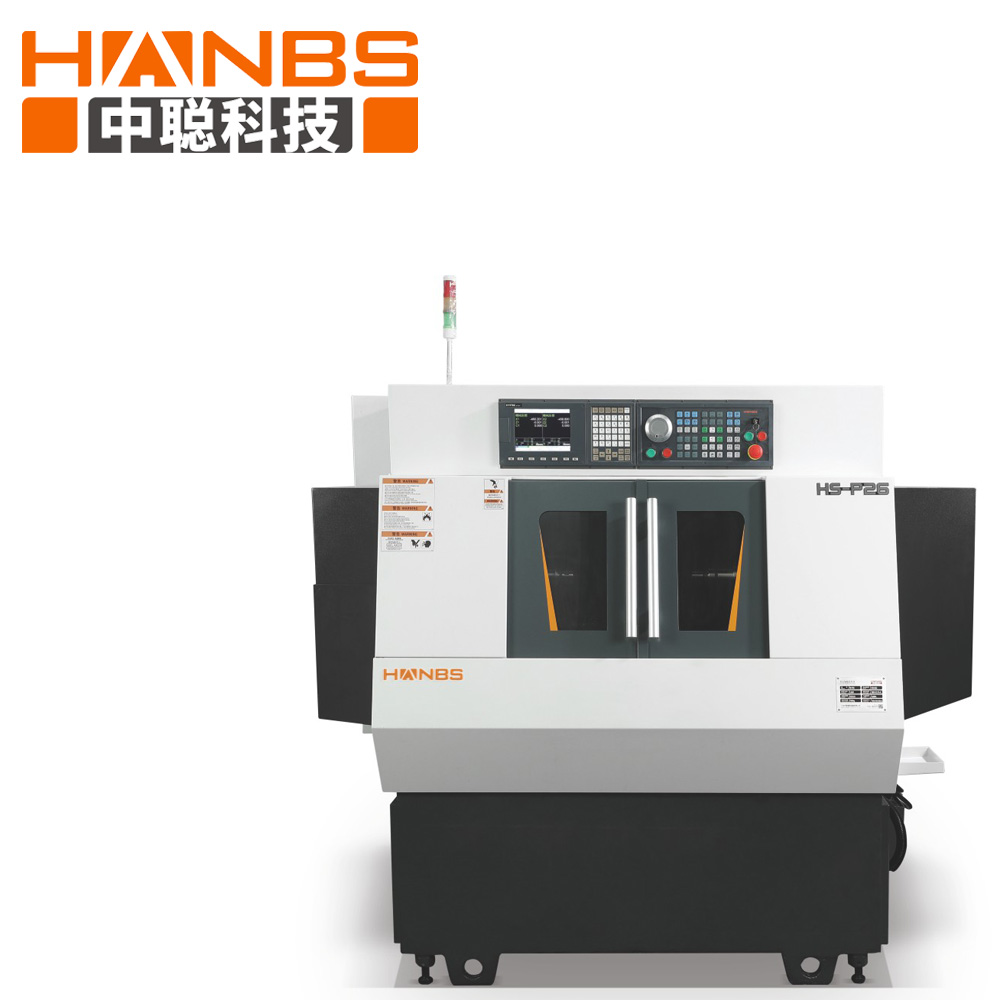

CNC Swiss machining function machine tool

Views: 0     Author: Site Editor     Publish Time: 2024-06-08      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The CNC Swiss-type machine uses high-quality grinding-grade gears and gear cooling devices to reduce gear clearance, increase service life, and improve processing performance. The unique ER16 axis and ER11 axis separate design takes into account the requirements of cutting force and processing accuracy. The motor built-in design greatly improves the use conditions of the motor and extends the service life of the motor.


1. CNC Swiss-type (core) machining function The machine tool is equipped with a three-axis drilling function, which can complete the drilling and tapping of the shaft end of the part. And for the customer's parts, you can choose to install a power tool function module with front and side drilling and milling functions to complete the precision drilling and milling of various shaft parts.

2. Specifications of CNC Swiss-type (core) machine The material specification is Ф1mm~Ф20mm, and can be processed to a length of 700mm. The length of one feeding is 165mm. The processing of long products can be realized through secondary feeding. It can process smooth heterogeneous materials, such as hexagonal, square, and three-sided standard profiles, and can process HRC34.

3. Speed of CNC Swiss-type (core) machine The speed range of the electric spindle is: 100~12000r/min, and the three coordinate axes of z, x, and y are all controlled by high-end servo motors. The c axis is the spindle indexing (five-axis four-linkage). High-precision imported ball screws and linear guides.

4. Research and development of CNC Swiss-type (core) machine The newly developed SZ-15/20 series machine tools have been improved and upgraded on the original basis as follows: Appearance design: humanized design of appearance and operation. Spindle: Spindle cooling fan alarm signal safety design. Long and short composite material feeder: can automatically switch the material feeding method according to the length of the processed material.

5. CNC center (core) machining is suitable for processing various high-precision, multi-batch, complex-shaped long shaft parts in the aviation, aerospace, military, automobile, motorcycle, communication, refrigeration, optics, home appliances, micro electronics, watches and other industries.
