CNC Lathe Setup: Five-Tool Synchronized

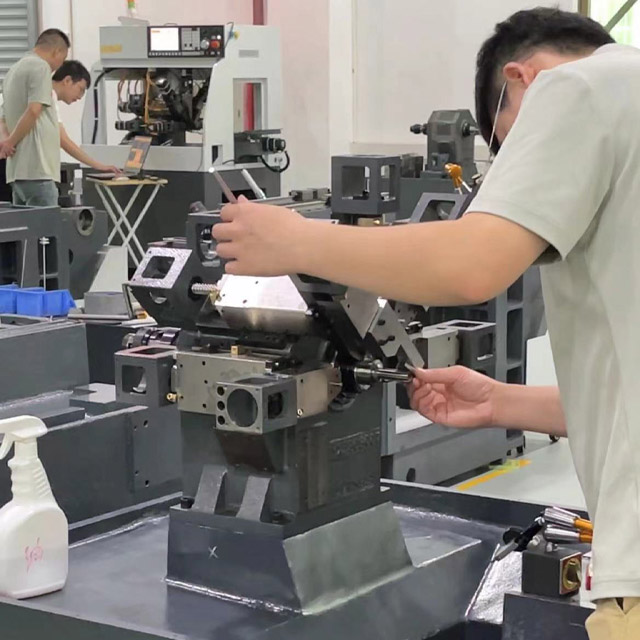

Installing a five-tool synchronized CNC lathe (often called a multi-channel CNC turning center) requires more than just setting up a standard machine. Because multiple tools can cut simultaneously, the process involves strict preparation and careful calibration. Below are the most important aspects to consider when installing this type of CNC lathe.



1. Foundation and Environment

Stable foundation: A CNC lathe with synchronized multi-tool operation is heavy and sensitive to vibration. A reinforced machine base is essential.

Leveling: Use a precision level to adjust the machine. Even a small misalignment can cause tool interference or loss of accuracy.

Environment control: Keep the lathe away from direct sunlight, temperature fluctuations, and excessive dust or oil mist.



2. Power, Air, and Fluid Systems

Electrical supply: Ensure proper voltage and current capacity, with a reliable ground connection.

Air and hydraulics: Many five-tool CNC lathes rely on pneumatic or hydraulic clamping. Check for stable pressure and leak-free connections.

Lubrication and cooling: Verify that spindle lubrication, guideway lubrication, and coolant circulation are working correctly.



3. Tooling and Setup

Tool interference check: When five tools are synchronized, the biggest risk is collision. Perform a virtual simulation before installation.



Tool offsets: Measure each tool length and input accurate offsets into the CNC system.

Tool change sequence: Confirm that tool turret or driven tool holders are programmed to avoid conflicts during operations.



4. CNC System and Programming

Parameter configuration: Enable the multi-channel or multi-path functions in the CNC system (Fanuc, Siemens, etc.).

Axis channel assignment: Each tool channel must be mapped correctly to avoid duplicate axis commands.

Dry run and simulation: Always run programs in simulation mode first to verify toolpaths before real cutting.



5. Safety and Testing

Limit settings: Define proper software limits to prevent axis overtravel.

Emergency stop: Test the E-stop button, interlocks, and safety sensors after installation.

Cutting test piece: Machine a standard part to validate accuracy, repeatability, and tool coordination.



6. Final Calibration and Acceptance

Geometric inspection: Check spindle runout, axis alignment, and turret positioning.

Production validation: Confirm that the five-tool synchronized cutting achieves both precision and efficiency as expected.



Conclusion

Installing a five-tool synchronized CNC lathe is not only about placing the machine on the shop floor. It involves preparing a strong foundation, setting up power and fluid systems, calibrating every tool, configuring the CNC system, and verifying safety functions. With proper installation, these advanced lathes can deliver high productivity, multi-tool machining, and excellent precision.
