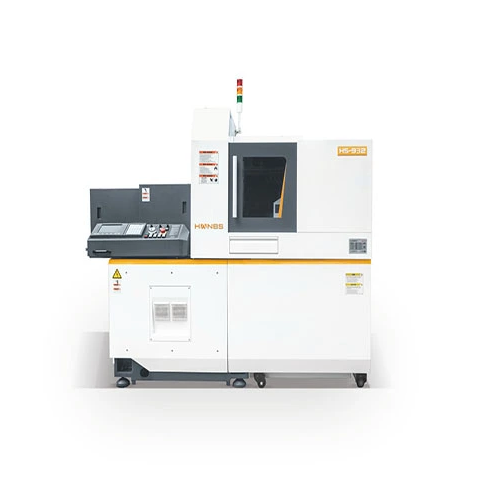

CNC Centering Machine with Back Shaft

CNC walking machine with back axis is a high-precision and efficient processing equipment, suitable for the processing of various metal materials and plastics. It is widely used in industries such as machinery, instruments, electronics, aviation, medical treatment, etc. Below, I will briefly introduce some basic information about CNC walking machine with back axis.

1、 Overview of CNC Centering Machine with Back Axis

CNC walking machine with back axis is a highly automated machining equipment with high machining accuracy, high machining efficiency, and convenient operation. During the machining process, the workpiece on the machine tool is fixed by a fixture, and the cutting tool is used to cut on the surface of the workpiece. Its back axis system can help the machine tool carry out more machining processes and ensure machining accuracy.

2、 Structural Characteristics of CNC Centering Machine with Back Axis

1. Bed: The bed is the main part of a CNC walking machine with a back shaft, used to support various components and workpieces. It is generally made of high-strength cast iron material.

2. Servo spindle: The servo spindle is one of the important components of the CNC walking machine with a back shaft, which can automatically adjust the speed and complete cutting tasks according to different process requirements.

3. Tool magazine: There are usually two types of tool magazines for CNC walking machines with a back axis. One is an automatic tool magazine, and the other is a manual tool magazine. The automatic replacement of tools in the tool magazine can greatly improve production efficiency.

4. Protective cover: The protective cover is a security guarantee for the CNC walking machine with a back shaft. During the processing, the protective cover can prevent particles such as iron chips or workpiece fragments from splashing and causing injury.

5. Control System: The control system of the CNC walking machine with a back axis can achieve fully digital machining control through its huge storage capacity, powerful computing power, and highly sensitive feedback control system.

3、 Advantages of CNC Centering Machine with Back Axis

1. High precision: The CNC walking machine with a back axis can accurately control parameters such as cutting depth and cutting speed, and can achieve high-speed automatic tool change, thereby ensuring machining accuracy and efficiency.

2. High machining efficiency: The CNC walking machine with a back axis has a high degree of automation, and through fully digital control technology, high-speed cutting processing is achieved, thereby greatly improving machining efficiency.

3. Wide applicability of workpieces: CNC walking machines with back shafts are suitable for processing various metal materials and plastics, covering various processing processes, and are widely used in industries such as machinery, instruments, electronics, aviation, and medical treatment.

In summary, the CNC walking machine with back axis is a high-precision and efficient processing equipment, with high automation, processing accuracy, and efficiency. It has a wide range of applications and is one of the important tools in modern manufacturing industry.
