Advances in synchronized spindle and guideway technology in the Swiss CNC Lathe

A double leap forward in precision and efficiency

With the growing demand for precision parts machining, the Swiss CNC Lathe is being used more and more in high-end manufacturing. One of its core advantages comes from the continuous evolution of synchronized spindle and guideway technology. This article briefly introduces the key development of these two technologies and their performance in improving efficiency and accuracy.

Synchronized spindle: the key to improve efficiency

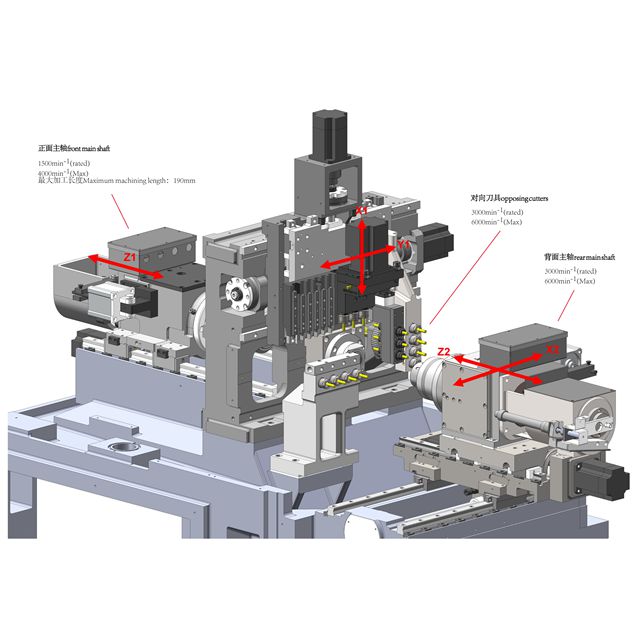

The traditional Swiss Lathe uses a single spindle for machining, which is limited by the ability of single-sided machining. The modern synchronized spindle (Synchro Spindle) technology, through the front and back of the dual spindle collaboration, to achieve a clamping to complete the front and back machining, reducing repetitive positioning errors, and significantly improve machining efficiency and coaxial accuracy.

Technical highlights include:

Servo drive instead of belt structure, faster spindle response;

Dual spindle composite machining, support for X-axis, Y-axis, taking into account turning and milling;

Synchronization control is more precise, the error is controlled at the micron level;

Automatic clamping and splicing integration, supporting unmanned operation.

This integrated machining method is especially suitable for medical devices, connectors, optical parts and other scenarios that require very high precision.

Second, the guide sleeve system: guaranteeing machining stability

The guide sleeve is the support core of Swiss Lathe, located near the cutting area, providing rigid support for the workpiece. In recent years, synchronized guide bush technology has been rapidly popularized, and its synchronized rotation with the spindle can effectively prevent friction and vibration caused by speed difference and ensure smooth cutting.

The evolution of the technology is characterized by:

Synchronized guideways: more stable cutting, suitable for long and thin workpieces;

Adjustable/detachable guideways: adapted to a wide range of materials and lengths;

Highly wear-resistant materials: longer service life and more stable precision.

The optimization of the guide bush enables Swiss CNC Lathe to maintain excellent dimensional accuracy and surface quality when machining difficult-to-machine materials such as stainless steel and titanium alloys.

Double enhancement: efficiency and precision in parallel

The integration of synchronous spindle and guide sleeve technology, so that the equipment in the efficiency and precision of a win-win situation:

machining efficiency increased by 30% -50%, support for a machine with multiple processes;

dimensional consistency of ± 0.002mm;

support for automated feeding, pick-up and online inspection, to promote unmanned production;

reduced failure rate, maintenance is more intelligent.

The future trend

In the future, these two technologies will develop in the direction of intelligent monitoring, AI compensation and data-driven optimization. Spindle and guide sleeve will realize real-time status monitoring, adaptive adjustment of processing parameters, to achieve a higher level of stability and automation.
